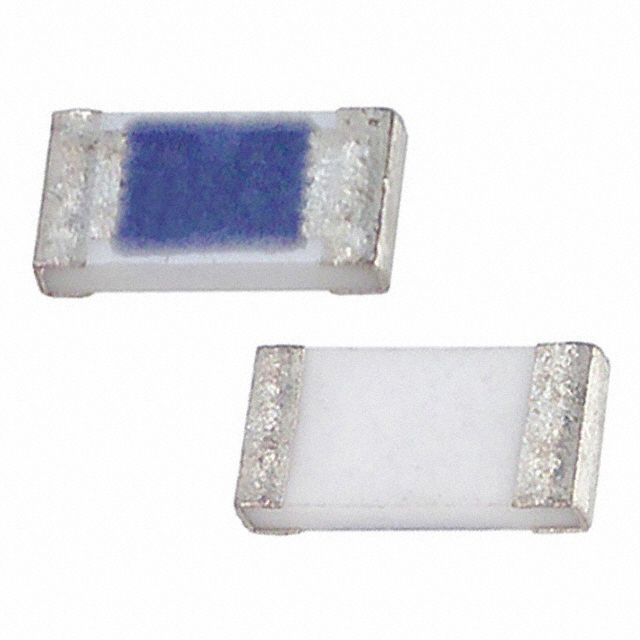

Same model may have multiple batches, images only for reference.
0685P9100-01 Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0685P9100-01

Part No 0685P9100-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 10A 50VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionFuses
Mfr Bel Fuse Inc.
Series 0685P
Part Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10 A
Voltage Rating - DC 50 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 150A
Melting I2t 25.0
Approval Agency AEC-Q200, CE, cURus
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)
DC Cold Resistance 0.0052 Ohms
Ultra Librarian 3D Model Ultra Librarian 0685P9100-01 CAD Model
