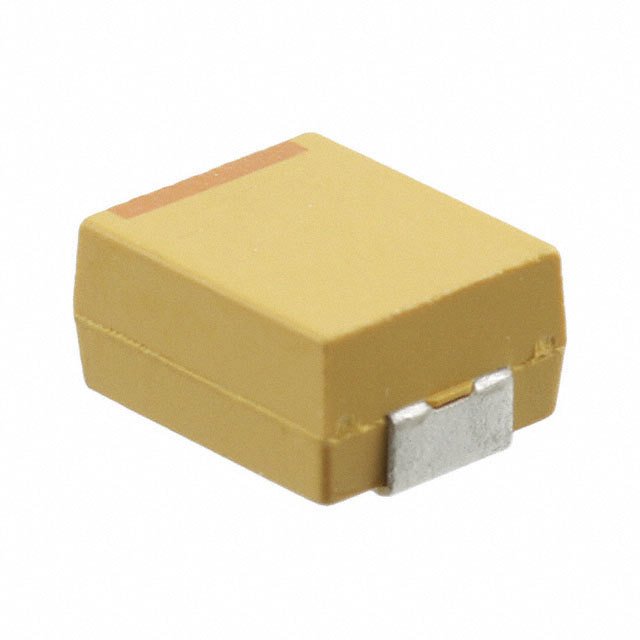

The TPSV687K006R0100 is a surface mount solid electrolytic capacitor from AVX Corporation. It is part of the TPS series, known for its robust performance and reliability in demanding applications. This capacitor features a molded case and is designed for automated placement on printed circuit boards.

Applications

• DC-DC converters
• Power management circuits
• Filtering in electronic circuits
• Storage and bypass applications
• Industrial control systems

Features

• Surface mount design
• Molded case
• Solid electrolytic capacitor
• High volumetric efficiency
• RoHS compliant

Benefits

• Provides stable capacitance over a wide temperature range.
• Offers low ESR (Equivalent Series Resistance), leading to reduced power loss and improved circuit efficiency.
• Ensures long operational life and high reliability.
• Facilitates high-density PCB designs due to its compact size.
• Reduces the risk of component failure in harsh environments.

Technical Specifications

The TPSV687K006R0100 has a capacitance of 680µF (microfarads) with a tolerance of ±10%. The voltage rating is 6.3V DC. The ESR is 0.100 Ohms. It operates in a temperature range of -55°C to +105°C. The dimensions of the component are standard for its case size (consult datasheet for precise measurements). It adheres to relevant industry standards for performance and safety. It's a Tantalum capacitor with polymer cathode providing a safe benign failure mode.
