Same model may have multiple batches, images only for reference.

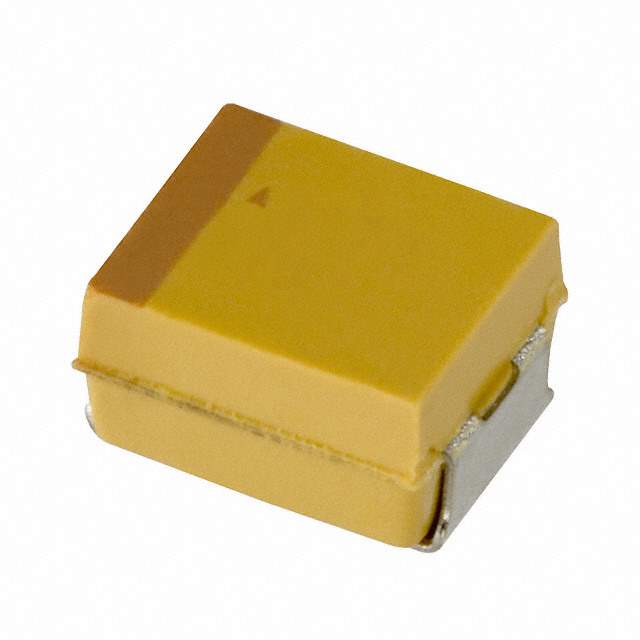

TPST226M010R0800 Real Image
Same model may have multiple batches, images only for reference.

TPST226M010R0800

Part No TPST226M010R0800
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10V 20% 1411 / Cap Tant Solid 22uF 10V T CASE 20% (3.5 X 2.8 X 1.2mm) Inward L SMD 3528-12 0.8 Ohm 125°C T/R
Datasheet
TPST226M010R0800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 10V
Type Molded
ESR (Equivalent Series Resistance) 800 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 1411 (3528 Metric)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Size Code T
Features General
Win Source Part Number 798336-TPST226M010R0800
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPST226M010R0800 CAD Model

Description

The AVX Corporation 798336-TPST226M010R0800 is a TPS series molded tantalum capacitor.

  • Capacitance: 22μF
  • Voltage Rating: 10V
  • ESR (Equivalent Series Resistance): 800 mOhm
