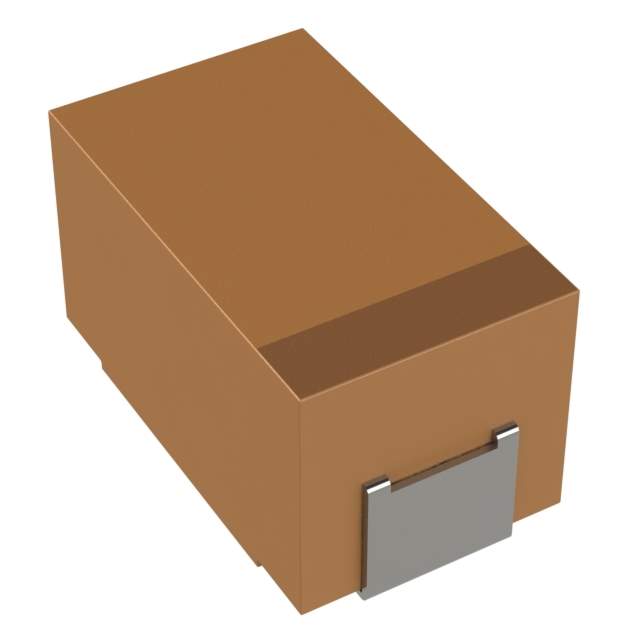

Same model may have multiple batches, images only for reference.

TPSE687M006R0100

Name: TPSE687M006R0100
Brand: AVX Corporation
SKU: 380176
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TPSE687M006R0100
Manufacturer	AVX Corporation
Catalog	Tantalum Capacitors
Description	Cap Tant Solid 680uF 6.3V E CASE 20% (7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.1 Ohm 125°C T/R / CAP TANT 680UF 6.3V 20% 2917
Datasheet	TPSE687M006R0100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	AVX Corporation
Packaging	Reel - TR
Status	Active
Capacitance	680μF
Tolerance	±20%
Voltage Rating	6.3V
Type	Molded
ESR	100 mOhm
Temperature Range - Operating	-55°C to 125°C
Mounting	SMD (SMT)
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.169" (4.30mm)
Manufacturer Size Code	E
Features	General Purpose
Win Source Part Number	048224-TPSE687M006R0100
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Industrial, Power Management, Portable Devices, Consumer Electronics
Family Name	TPS
Introduction Date	May 05, 2009
ECCN	EAR99
Country of Origin	Czech Republic
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian TPSE687M006R0100 CAD Model

Alternative Products

Description

The AVX Corporation TPSE series capacitor is a molded type capacitor with a capacitance of 680μF and a voltage rating of 6.3V.

Capacitance: 680μF
Voltage Rating: 6.3V
Tolerance: ±20%
ESR: 100 mOhm
Usage: General-purpose
Mounting Type: SMD (SMT)
Height: 0.169" (4.30mm)
Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Temperature Range: -55°C to 125°C
Series: TPSE
Halogen-Free: Yes
Estimated EOL Date: 2028
Applications: Industrial, power management, portable devices, and consumer electronics sectors
