Same model may have multiple batches, images only for reference.

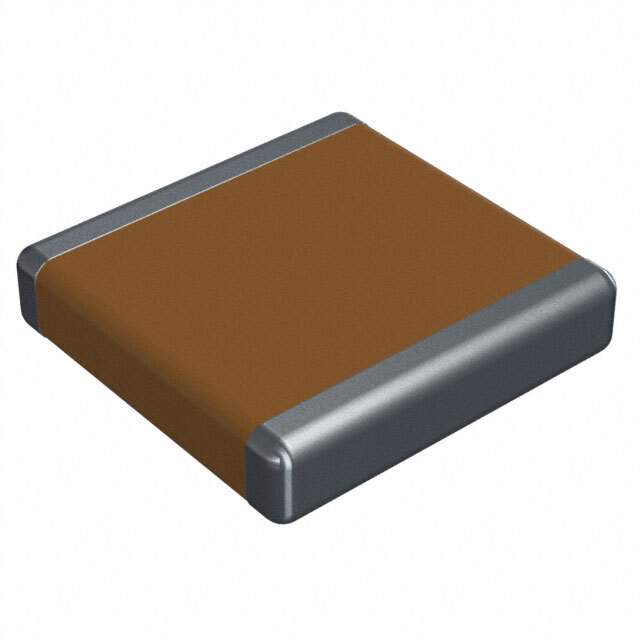

22255C105MAT2A Real Image
Same model may have multiple batches, images only for reference.

22255C105MAT2A

Part No 22255C105MAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 1UF 50V X7R 2225
Datasheet
22255C105MAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 1μF
Tolerance ±20%
Voltage Rating DC 50V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Applications General
Mounting Surface Mount, MLCC
Package 2225 (5763 Metric)
Dimension 0.225" L x 0.250" W (5.72mm x 6.35mm)
Thickness (Maximum) 0.050" (1.27mm)
Win Source Part Number 761837-22255C105MAT2A
Popularity Medium
Supply and Demand Status Balance
Family Name X7R Dielectric
Introduction Date March 18, 2000
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 22255C105MAT2A CAD Model

Description

The AVX Corporation 761837-22255C105MAT2A is a surface mount, MLCC capacitor from AVX Corporation.

  • Capacitance: 1μF
  • Voltage Rating: 50V DC
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Operating Temperature Range: -55°C to 125°C
  • Dielectric: X7R
  • Applications: General
  • Package: 2225 (5763 Metric)
  • Dimensions: 0.225" L x 0.250" W (5.72mm x 6.35mm)
  • Thickness: 0.050" (1.27mm)
  • Supply and Demand: Balanced
  • Country of Manufacture: United States of America
  • EOL Date: Estimated 2027
