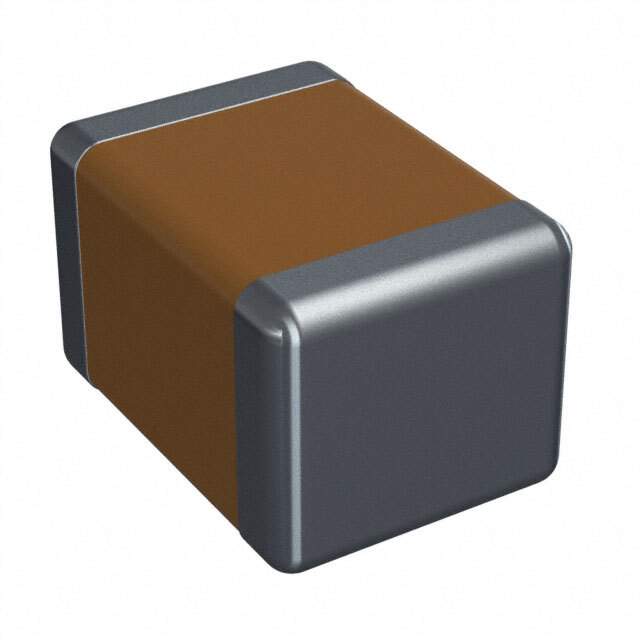

1812SA820KAT1A Real Image
Same model may have multiple batches, images only for reference.

1812SA820KAT1A

Part No 1812SA820KAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 82PF 1.5KV NP0 1812
Datasheet
1812SA820KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 82pF
Tolerance ±10%
Voltage Rating 1500V (1.5kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C to 125°C
Features High Voltage
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.100" (2.54mm)
Win Source Part Number 1004225-1812SA820KAT1A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1812SA820KAT1A CAD Model

Description

AVX Corporation's high voltage capacitor has a capacitance of 82pF and a voltage rating of 1500V (1.5kV).

  • Capacitance: 82pF
  • Voltage Rating: 1500V (1.5kV)
  • Tolerance: ±10%
  • Temperature Coefficient: C0G, NP0
  • Thickness: 0.100" (2.54mm)
  • Mounting: Surface mount, MLCC
  • Category: Capacitor
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
