Same model may have multiple batches, images only for reference.

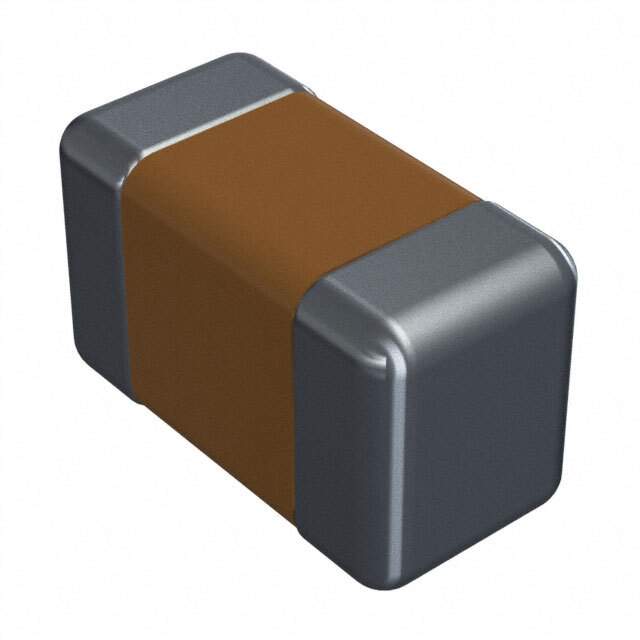

04025U1R5BAT2A Real Image
Same model may have multiple batches, images only for reference.

04025U1R5BAT2A

Part No 04025U1R5BAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description Ultra Low ESR, “U” Series, C0G (NP0) Chip Capacitors
Datasheet
04025U1R5BAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series U
Packaging Reel - TR
Capacitance 1.5pF
Tolerance ±0.1pF
Voltage Rating DC 50V
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Features Ultra-Low ESR
Applications RF, Microwave, High Frequency
Mounting Surface Mount, MLCC
Package 0402 (1005 Metric)
Size 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Maximum) 0.024" (0.60mm)
Win Source Part Number 1120584-04025U1R5BAT2A
Manufacturer Homepage www.avx.com
Popularity Medium
Supply and Demand Status Limited
Family Name U
Introduction Date June 30, 2003
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 04025U1R5BAT2A CAD Model

Description

This electronic component is a capacitor that has a Win Source Part Number of 1120584-04025U1R5BAT2A.

  • Manufacturer: AVX Corporation
  • Category: Capacitors
  • Capacitance: 1.5pF
  • Tolerance: ±0.1pF
  • ESR: Ultra-Low
  • Temperature Coefficient: C0G, NP0
  • Application: RF, Microwave, High-Frequency
  • Mounting Style: Surface Mount, MLCC
  • Package Size: 0402 (1005 Metric)
  • Voltage Rating DC: 50V
  • Thickness (Maximum): 0.024" (0.60mm)
