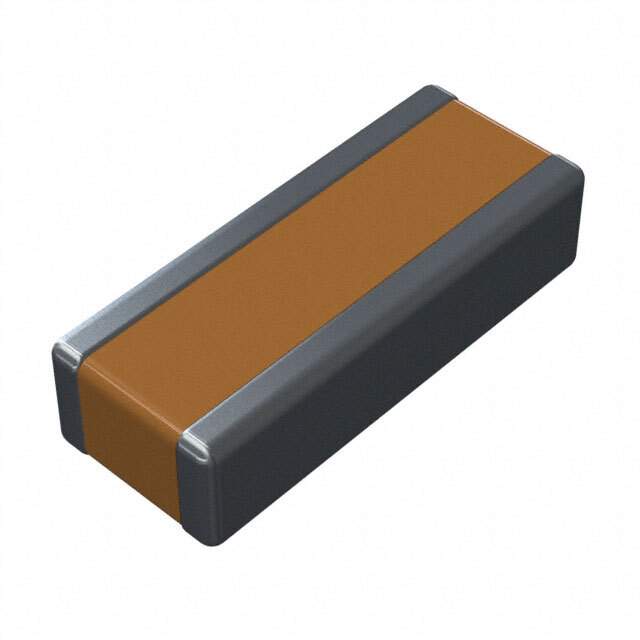

The 0306ZC224MAT2A is a ceramic capacitor manufactured by AVX Corporation. It is a surface-mount multilayer ceramic capacitor (MLCC) designed for a variety of general-purpose applications.

Applications:

• Bypass Capacitors in electronic circuits
• Decoupling Capacitors for noise reduction
• Filtering in power supplies
• Timing Circuits
• General-purpose applications in electronic devices

Features:

• Surface Mount Device (SMD): Designed for automated assembly.
• Multilayer Ceramic Capacitor (MLCC): Provides high capacitance in a small size.
• High Capacitance Stability: Maintains capacitance over a wide range of temperatures.
• Low Equivalent Series Resistance (ESR): Minimizes power loss.
• RoHS Compliant: Complies with environmental regulations.

Benefits:

• Efficient Circuit Performance: Low ESR minimizes power loss and improves circuit efficiency.
• Reliable Operation: High capacitance stability ensures consistent performance over a wide temperature range.
• Space-Saving Design: Small size allows for high-density circuit designs.
• Automated Assembly: SMD design facilitates automated assembly, reducing manufacturing costs.
• Environmentally Friendly: RoHS compliance ensures the product is environmentally safe.

Additional Details:

The 0306ZC224MAT2A has a capacitance value of 0.22µF. The voltage rating is 10V. The case size is 0306 (0815 Metric). The temperature coefficient is Z5U, which indicates capacitance variation with temperature. It is typically used in consumer electronics, industrial equipment, and automotive applications where a stable and reliable capacitor is required.
