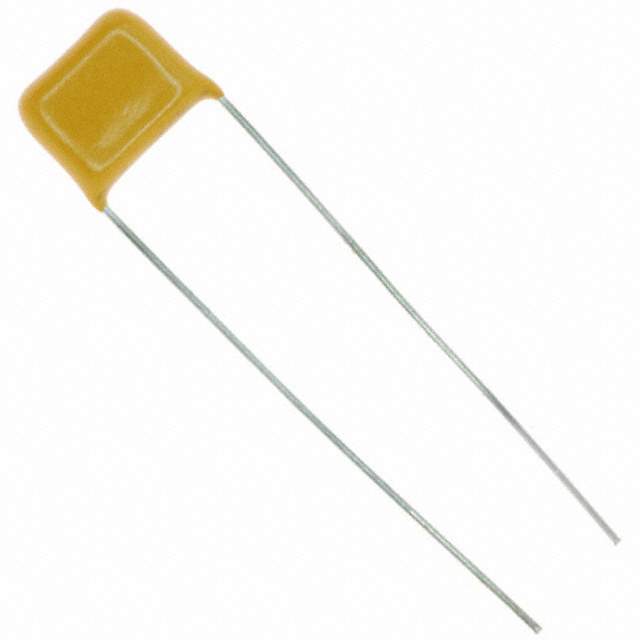

SV04JA820JAR Real Image
Same model may have multiple batches, images only for reference.

SV04JA820JAR

Part No SV04JA820JAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV04JA820JAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 82 pF
Tolerance ±5%
Voltage - Rated 4000V (4kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.449" L x 0.200" W (11.40mm x 5.08mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.300" (7.62mm)
Lead Style Straight
Other Names 478-4044
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302914-SV04JA820JAR
Ultra Librarian 3D Model Ultra Librarian SV04JA820JAR CAD Model

Description

The 1302914-SV04JA820JAR is a ceramic capacitor from the SV series designed for general-purpose applications.

  • Packaging: Bulk
  • Standard Package: 200 units
  • Capacitance: 82 pF
  • Tolerance: ±5%
  • Rated Voltage: 4000V (4kV)
  • Type: C0G, NP0
  • Temperature Coefficient: C0G, NP0
  • Package/Case: Radial
  • Temperature Range: -55°C to 125°C
  • Height: 0.220" (5.59mm)
  • Dimension: 0.449" L x 0.200" W (11.40mm x 5.08mm)
