Same model may have multiple batches, images only for reference.

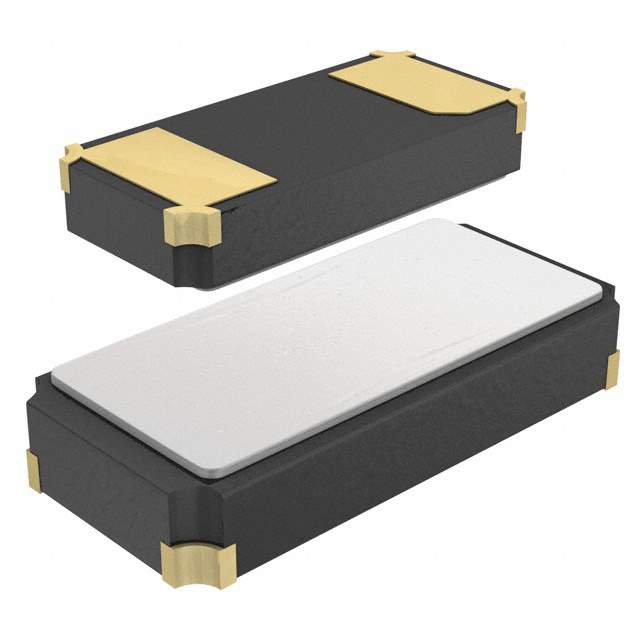

ST2012SB32768C0HPWBB Real Image
Same model may have multiple batches, images only for reference.

ST2012SB32768C0HPWBB

Part No ST2012SB32768C0HPWBB
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 32.7680KHZ 7PF SMD / 32.768 kHz ±20ppm Crystal 7pF 80 kOhms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr KYOCERA AVX
Series ST2012SB, Kyocera
Package Tape & Reel
Product Status Obsolete
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 80 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Other Names 1253-1342-1,1253-1342-2,478-ST2012SB32768C0HPWBBDKR,478-ST2012SB32768C0HPWBBCT,1253-1342-6,1253-1342-6-ND,478-ST2012SB32768C0HPWBB,1253-1342-1-ND,1253-1342-2-ND,478-ST2012SB32768C0HPWBB-ND,478-ST2012SB32768C0HPWBBTR
Standard Package 3,000
Win Source Part Number 987077-ST2012SB32768C0HPWBB
Ultra Librarian 3D Model Ultra Librarian ST2012SB32768C0HPWBB CAD Model

Description

The ST2012SB32768C0HPWBB is a crystal oscillator electronic component manufactured by KYOCERA AVX.

  • Manufacturer: KYOCERA AVX
  • Series: ST2012SB
  • Packaging: Tape and Reel
  • Standard Package Quantity: 3,000
  • Oscillator Type: kHz Crystal (Tuning Fork)
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 80 kOhms
  • Frequency Tolerance: ±20ppm
  • Mounting: Surface Mount Device (SMD)
  • Applications: Microcontrollers, Real-Time Clocks, Timing Circuits
  • Operating Temperature Range: -40°C to 85°C
