Same model may have multiple batches, images only for reference.

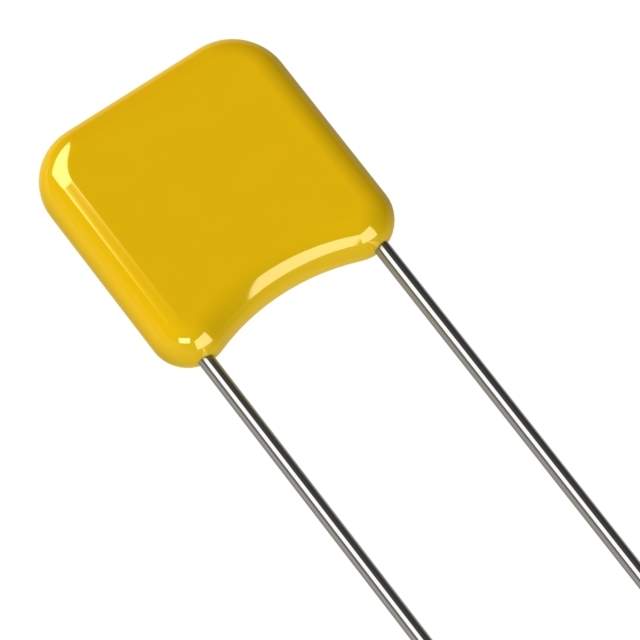

SR505E475MAA Real Image
Same model may have multiple batches, images only for reference.

SR505E475MAA

Part No SR505E475MAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR505E475MAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient Z5U
Temperature Range - Operating 10°C ~ 85°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.500" (12.70mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Other Names 2266-SR505E475MAA,478-7657
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305412-SR505E475MAA
Ultra Librarian 3D Model Ultra Librarian SR505E475MAA CAD Model

Description

The SkyCap SR series ceramic capacitor from KYOCERA AVX is a general-purpose capacitor with a capacitance of 4.7 μF and a rated voltage of 50V.

  • Tolerance: ±20%
  • Temperature Coefficient: Z5U
  • Package: Radial package
  • Leads: Straight leads with a lead spacing of 0.400" (10.16mm)
  • Height: 0.500" (12.70mm)
  • Width: 0.200" (5.08mm)
  • Ideal for: Use in a variety of applications, including general-purpose electronics
  • Package: Bulk package of 500 units
