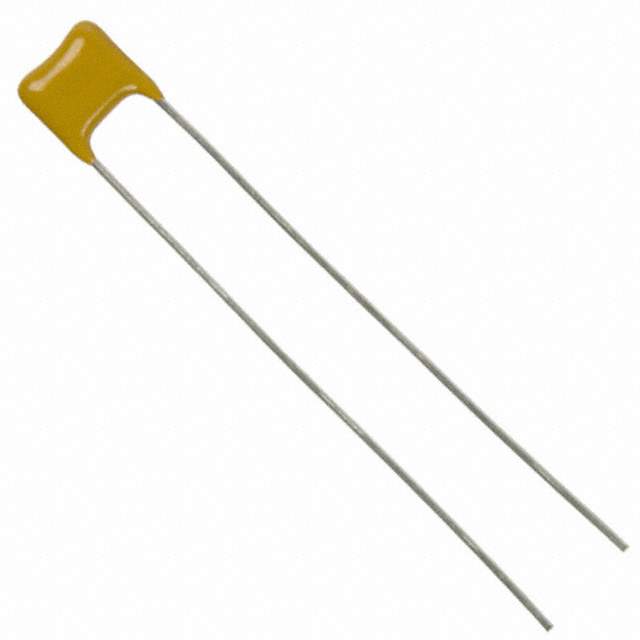

SR305C684KAATR1 Real Image
Same model may have multiple batches, images only for reference.

SR305C684KAATR1

Part No SR305C684KAATR1
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR305C684KAATR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Tape & Reel
Capacitance 0.68 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.300" L x 0.150" W (7.62mm x 3.81mm)
Height - Seated (Max) 0.360" (9.14mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Straight
Other Names 478-SR305C684KAATR1CT,478-SR305C684KAATR1DKR,SR305C684KAATR1,478-SR305C684KAATR1TR
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305283-SR305C684KAATR1
Ultra Librarian 3D Model Ultra Librarian SR305C684KAATR1 CAD Model

Description

The SkyCap® SR series ceramic capacitors from KYOCERA AVX are designed for general purpose applications.

  • Capacitance: 0.68 µF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Mounting: Through Hole
  • Package: Radial
  • Height of Seated Capacitor: 0.360" (9.14mm)
  • Lead Spacing: 0.200" (5.08mm)
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape & Reel
  • Package Quantity: 2,000
