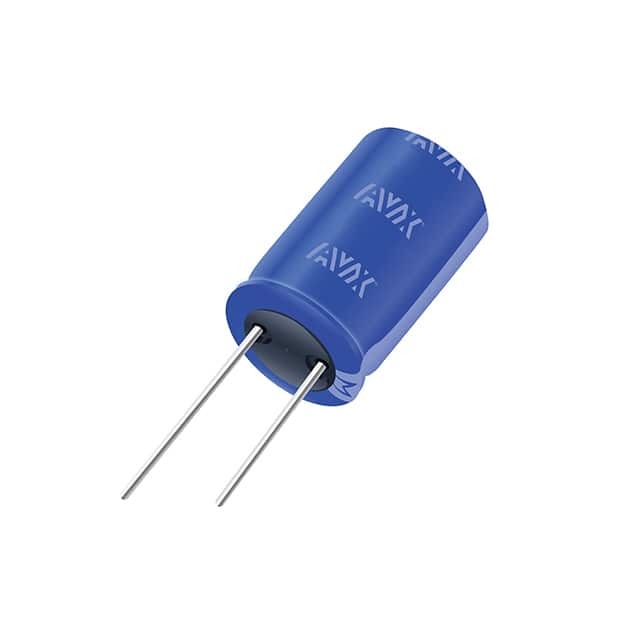

Same model may have multiple batches, images only for reference.
SCCT20B106PRB AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

SCCT20B106PRB

Part No SCCT20B106PRB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCCT20B106PRB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCC
Package Bulk
Capacitance 10 F
Tolerance 0%, +100%
Voltage - Rated 2.7 V
ESR (Equivalent Series Resistance) 50mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.217" (5.50mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names SCCT20B106SRB,478-10996,SCCT20B106SRB
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1302754-SCCT20B106PRB
Ultra Librarian 3D Model Ultra Librarian SCCT20B106PRB CAD Model

Description

The 1302754-SCCT20B106PRB electronic component is an electric double layer capacitor (EDLC), also known as a supercapacitor.

  • Series: SCC
  • Capacitance: 10 F
  • Tolerance: 0%, +100%
  • Rated Voltage: 2.7V
  • ESR: 50mOhm @ 1kHz
  • Mounting: Through-Hole
  • Termination: PC Pins
  • Package: Radial, Can
  • Package Size: 600
  • Height: 0.866" (22.00mm)
  • Dimension: 0.492" Dia (12.50mm)
  • Operating Temperature: -40°C ~ 65°C
