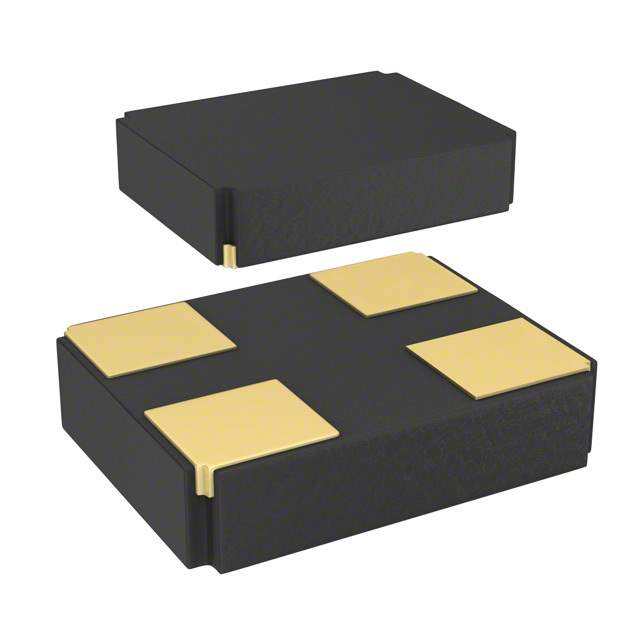

CX3225GB24000P0HPQCC Real Image
Same model may have multiple batches, images only for reference.

CX3225GB24000P0HPQCC

Part No CX3225GB24000P0HPQCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kyocera International Inc. Electronic Components
Packaging Reel
Type MHz Crystal
Frequency 24MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.035" (0.90mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806239-CX3225GB24000P0HPQCC
Ultra Librarian 3D Model Ultra Librarian CX3225GB24000P0HPQCC CAD Model

Description

The CX3225GB24000P0HPQCC is a 24MHz crystal from Kyocera International Inc. Electronic Components.

  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • ESR (Equivalent Series Resistance): 60 Ohms
  • Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • Package: 4-SMD, No Lead
  • Height: 0.035" (0.90mm)
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
