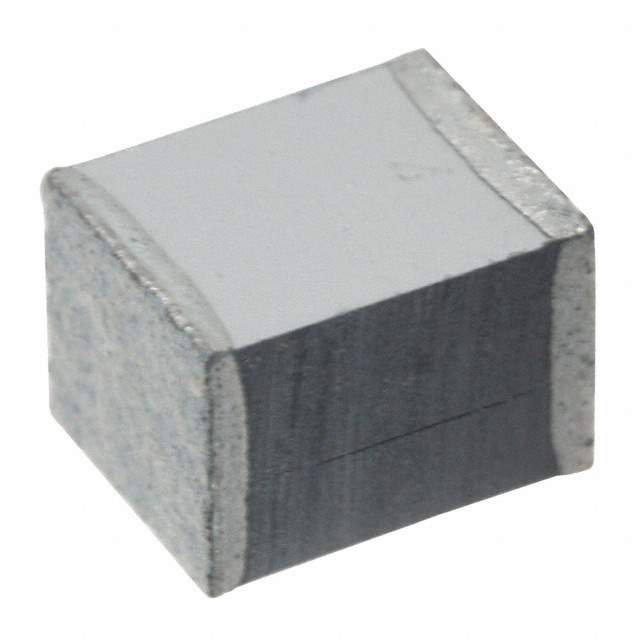

CB052D0105KBC Real Image
Same model may have multiple batches, images only for reference.

CB052D0105KBC

Part No CB052D0105KBC
Manufacturer AVX Corp/Kyocera Corp
Catalog Film Capacitors
Description CAP FILM 1UF 10% 63VDC 2824  /  1 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked 2824 (7260 Metric)
Datasheet
CB052D0105KBC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KYOCERA AVX
Series CB
Package Tape & Reel
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2824 (7260 Metric)
Dimension 0.283" L x 0.240" W (7.20mm x 6.10mm)
Height - Seated (Max) 0.146" (3.70mm)
Termination Solder Pads
Applications General Purpose
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 478-11601-2,478-11601-1,1253-1828-2,CB052D0105KBC-ND,1253-1828-2-ND,478-11601-6
Standard Package 2,250
Win Source Part Number 989663-CB052D0105KBC
Ultra Librarian 3D Model Ultra Librarian CB052D0105KBC CAD Model

Description

The CB Series Film Capacitor by KYOCERA AVX is a high-quality capacitor that is designed for general-purpose applications.

  • Capacitance: 1 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 40V
  • Voltage Rating (DC): 63V
  • Material: Polyester, Polyethylene Terephthalate (PET), and Metallized-Stacked Dielectric
  • Height: 0.146" (3.70mm)
  • Mounting: SMD (SMT)
  • Package: 2824 (7260 Metric)
  • Temperature Range: -55°C to 125°C
  • Standard Package: 2,250
  • ECCN: EAR99
