Same model may have multiple batches, images only for reference.

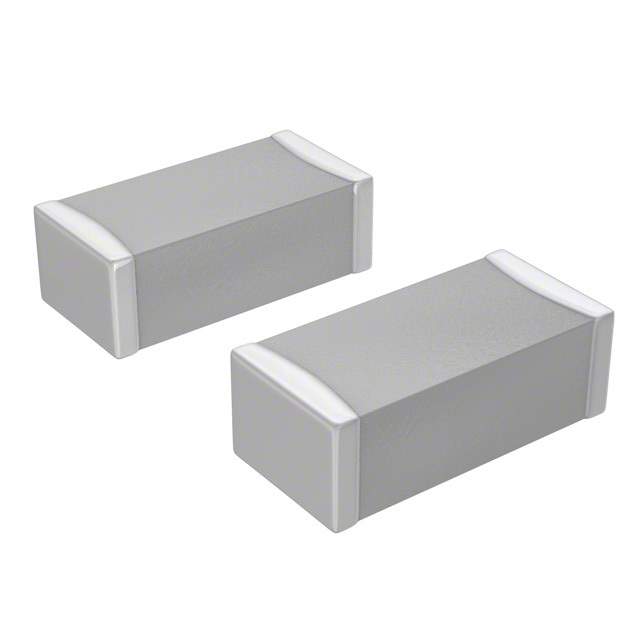

CB017E0103JBA Real Image
Same model may have multiple batches, images only for reference.

CB017E0103JBA

Part No CB017E0103JBA
Manufacturer AVX Corp/Kyocera Corp
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 100VDC 1206 / 10000 pF Film Capacitor 63V 100V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1206 (3216 Metric)
Datasheet
CB017E0103JBA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KYOCERA AVX
Series CB
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.130" L x 0.063" W (3.30mm x 1.60mm)
Height - Seated (Max) 0.045" (1.15mm)
Applications General Purpose
Features Low ESR, Low ESL
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.25.0010
Other Names 478-13090-1,478-13090-2,478-13090-6
Standard Package 3,500
Win Source Part Number 975091-CB017E0103JBA
Ultra Librarian 3D Model Ultra Librarian CB017E0103JBA CAD Model

Description

The 975091-CB017E0103JBA is a film capacitor from the CB series with a capacitance of 10000 pF and a voltage rating of 63V (AC) and 100V (DC).

  • Tolerance: ±5%
  • Dielectric Material: Polyester, polyethylene naphthalate (PEN), metallized-stacked
  • Package: Tape and reel
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • Height-Seated (max): 0.045" (1.15mm)
  • Standard Package: 3,500
  • Product Dimension: 0.130" L x 0.063" W (3.30mm x 1.60mm)
  • MSL Level: 3 (168 Hours)
  • RoHS Compliance: Yes
