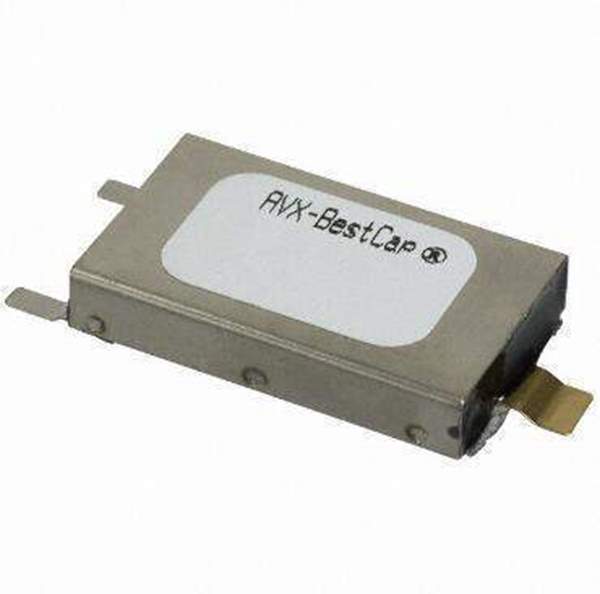

BZ01CA223ZSB KYOCERA AVX
Same model may have multiple batches, images only for reference.

BZ01CA223ZSB

Part No BZ01CA223ZSB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 22MF -20% +80% 12V SMD
Datasheet
BZ01CA223ZSB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Category Capacitors Electric Double Layer Capacitors (EDLC), Supercapacitors
Packaging  Tray
Part Status Obsolete
Capacitance 22 mF
Tolerance -20%, +80%
Voltage - Rated 12 V
ESR (Equivalent Series Resistance) 350mOhm
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination SMD (SMT) Tabs
Mounting Type Surface Mount
Package / Case BZ01, 3 Lead
Win Source Part Number WS1307483-BZ01CA223ZSB
Ultra Librarian 3D Model Ultra Librarian BZ01CA223ZSB CAD Model

Description

22 mF (EDLC) Supercapacitor 12 V BZ01, 3 Lead 350mOhm 1000 Hrs @ 70°C
