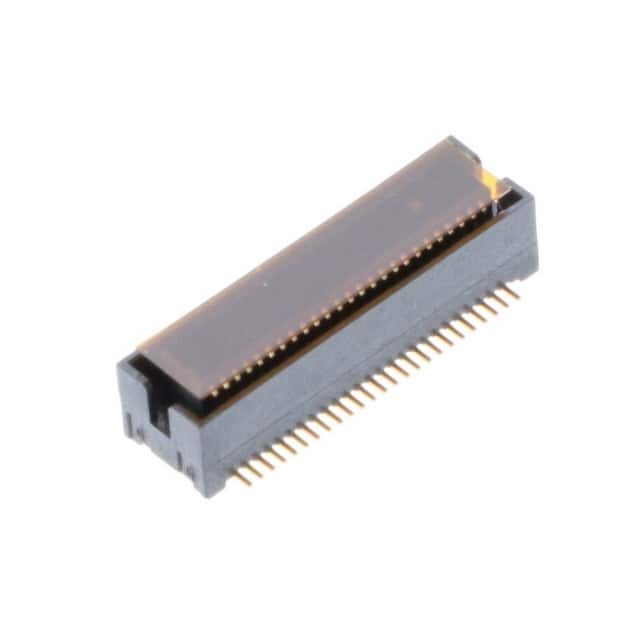

Same model may have multiple batches, images only for reference.

245047050900829+

Name: 245047050900829+
Brand: AVX Corp/Kyocera Corp
SKU: 854675
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	245047050900829+
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Rectangular Connectors
Description	RECPT - 0.5MM PITCH - 50 POS - V / 50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	245047050900829+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	AVX Corp/Kyocera Corp
Series	5047, Kyocera
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	50
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Pick and Place
Contact Finish	Gold
Mated Stacking Heights	5mm, 7mm
Height Above Board	0.161" (4.10mm)
Base Product Number	245047
Standard Package	800 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854675-245047050900829+
Ultra Librarian 3D Model	Ultra Librarian 245047050900829+ CAD Model

Alternative Products

Description

The 5047 series edge type mezzanine connectors from Kyocera are ideal for board-to-board connections in various electronic applications.

Positions: 50
Pitch: 0.020" (0.50mm)
Connector Type: Receptacle
Contact Type: Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Feature: Pick and Place
Mated Stacking Heights: 5mm and 7mm
Height Above Board: 0.161" (4.10mm)
Manufacturer: AVX Corp/Kyocera Corp
