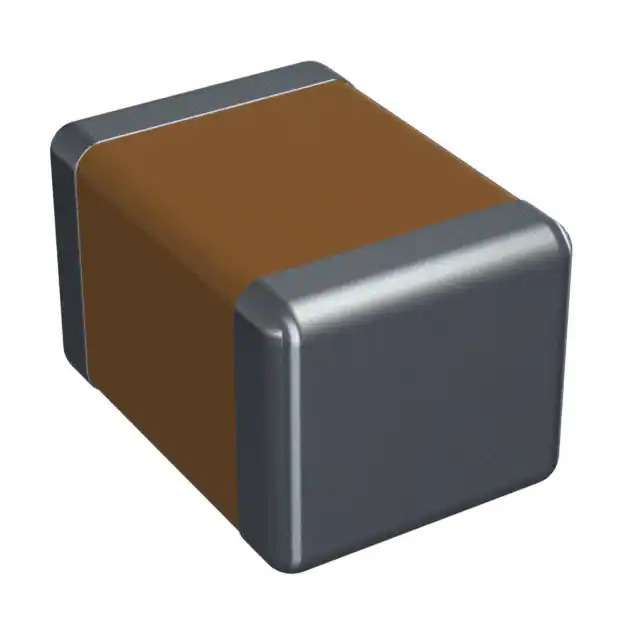

Same model may have multiple batches, images only for reference.
1812HA221JAT1A AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

1812HA221JAT1A

Part No 1812HA221JAT1A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 220PF 3KV C0G/NP0 1812 / 220 pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric)
Datasheet
1812HA221JAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KYOCERA AVX
Series -
Package Tape & Reel
Product Status Active
Capacitance 220 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Size / Dimension 0.181" L x 0.126" W (4.60mm x 3.20mm)
Height - Seated (Max) -
Thickness (Max) 0.087" (2.20mm)
Lead Spacing -
Lead Style -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1356953-1812HA221JAT1A
Ultra Librarian 3D Model Ultra Librarian 1812HA221JAT1A CAD Model

Description

The KYOCERA AVX 1812HA221JAT1A capacitor is a high-voltage ceramic capacitor designed for general-purpose applications.

  • Capacitance: 220 pF
  • Voltage Rating: 3000V (3kV)
  • Tolerance: ±5%
  • Package Size: 1812 (4532 Metric)
  • Dimensions: 0.181" L x 0.126" W (4.60mm x 3.20mm)
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Surface Mount
  • REACH: Compliant
  • Status: Active
  • Packaging: Tape and Reel
