Same model may have multiple batches, images only for reference.

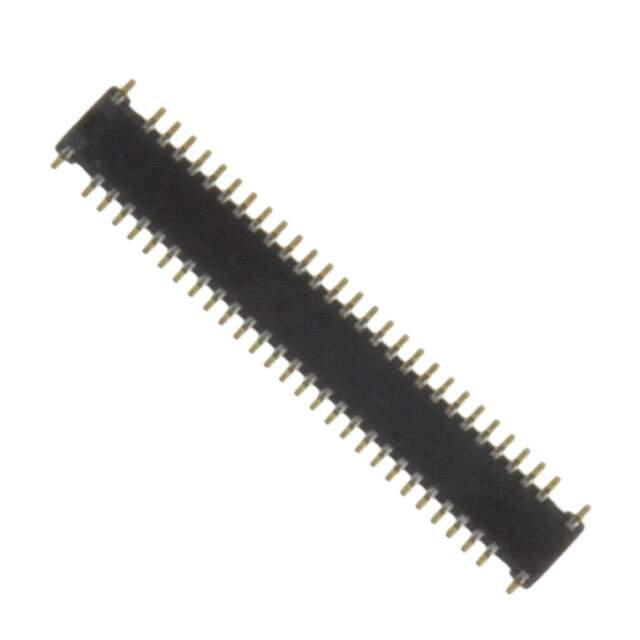

145802054002829+ Real Image
Same model may have multiple batches, images only for reference.

145802054002829+

Part No 145802054002829+
Manufacturer AVX Corp/Kyocera Corp
Catalog Rectangular Connectors
Description CONN PLUG 54POS .4MM BOARD-BOARD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer AVX Corp/Kyocera Corp
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 54
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1001480-145802054002829+
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 145802054002829+ CAD Model

Description

This component is suitable for a range of applications and has a plug, outer shroud contacts connector type.

  • Pitch: 0.016" (0.40mm)
  • Features: Board guide and solder retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.9μin (0.10μm)
  • Mated Stacking Heights: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
