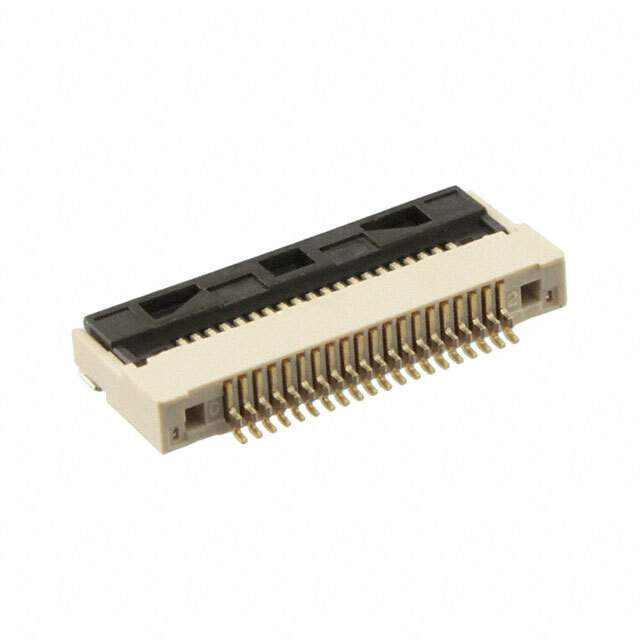

The AVX Corp/Kyocera Corp 6288 series connector is a high-quality electronic component that comes with 20 positions and a pitch of 0.020" (0.50mm).

• Operating Temperature: -40°C to 105°C
• Solder Retention: Yes
• Zero Insertion Force (ZIF): Yes
• Contact Finish: Gold
• Contact Finish Thickness: 3.9μin (0.10μm)
• Contact Material: Copper Alloy
• Voltage Rating: 50V
• Current Rating: 0.4A
• Height Above Board: 0.079" (2.00mm)
• Flat Flex Type: FFC, FPC
• Connector/Contact Type: Contacts, Bottom
• Thickness: 0.30mm
• Locking Feature: Flip Lock
• Mounting Style: Surface Mount, Right Angle
