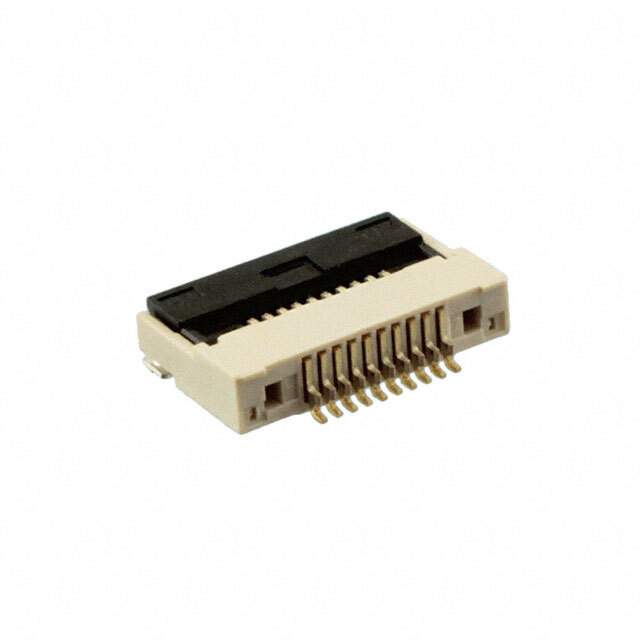

Same model may have multiple batches, images only for reference.

046288010000846+

Name: 046288010000846+
Brand: AVX Corp/Kyocera Corp
SKU: 989877
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	046288010000846+
Manufacturer	AVX Corp/Kyocera Corp
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 10POS 0.50MM R/A / 10 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	046288010000846+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	KYOCERA AVX
Series	6288, Kyocera
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	10
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Plastic
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 105°C
Current Rating (Amps)	0.4A
Contact Finish Thickness	3.94µin (0.10µm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	478-5455-2,478-5455-1,478-5455-1-ND,478-5455-2-ND,478-046288010000846+,478-5455-6-ND,478-5455-6
Standard Package	2,000
Win Source Part Number	989877-046288010000846+
Ultra Librarian 3D Model	Ultra Librarian 046288010000846+ CAD Model

Alternative Products

Description

The Kyocera AVX 989877-046288010000846+ is a Flat Flexible Connector (FFC) that has 10 positions, a pitch of 0.020" (0.50mm), and a voltage rating of 50V.

Positions: 10
Pitch: 0.020" (0.50mm)
Voltage Rating: 50V
Feature: Solder Retention
Feature: Zero Insertion Force (ZIF)
Contact Finish: Gold
Contact Finish Thickness: 3.94µin (0.10µm)
Package: Tape & Reel
Contact Material: Copper Alloy
Height Above Board: 0.079" (2.00mm)
FFC, FCB Thickness: 0.30mm
Locking Feature: Flip Lock
Cable End Type: Tabbed
Housing Material: Plastic
