Same model may have multiple batches, images only for reference.

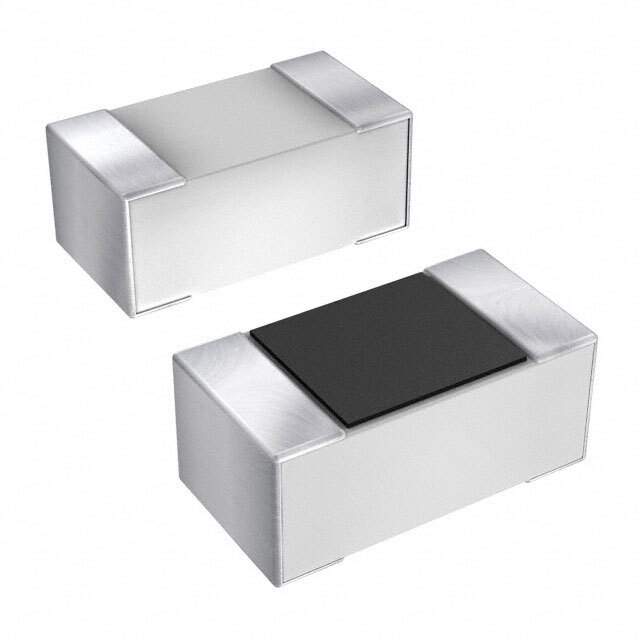

04023J3R9CBWTR Real Image
Same model may have multiple batches, images only for reference.

04023J3R9CBWTR

Part No 04023J3R9CBWTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 3.9PF 25V 0402 / 3.9 pF Thin Film Capacitor 25 V 0402 (1005 Metric)
Datasheet
04023J3R9CBWTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Thin Film Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 3.9 pF
Tolerance ±0.25pF
Voltage - Rated 25 V
Mounting Surface Mount
Case / Package 0402 (1005 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.020" (0.50mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.29.0040
Standard Package 5,000
Win Source Part Number 1331454-04023J3R9CBWTR
Ultra Librarian 3D Model Ultra Librarian 04023J3R9CBWTR CAD Model

Description

The KYOCERA AVX 04023J3R9CBWTR thin film capacitor is a surface mount component designed for use in RF applications.

  • Capacitance: 3.9 pF
  • Voltage Rating: 25V
  • Application: High Frequency Circuits
  • Features: Low Loss, High Q
  • Package: 0402 (1005 Metric)
  • Size: 0.039" L x 0.022" W (1.00mm x 0.55mm)
  • ECCN: EAR99
  • REACH Regulations: Affected
  • Packaging: Reel
  • Standard Package: 5,000
