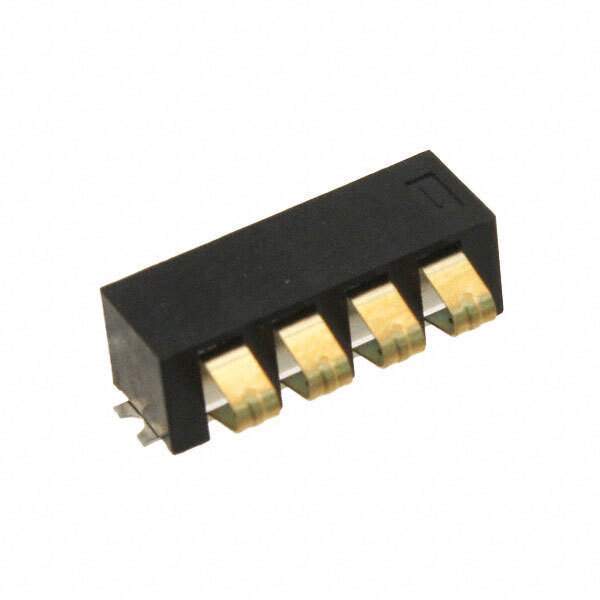

009155004541006 Real Image1 009155004541006 Real Image2
Same model may have multiple batches, images only for reference.
009155004541006 Real Image1 009155004541006 Real Image2
009155004541006 Real Image1 009155004541006 Real Image2
Same model may have multiple batches, images only for reference.

009155004541006

Part No 009155004541006
Manufacturer AVX Corp/Kyocera Corp
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING BATTERY 4POS R/A SMD / 4 Position Spring Battery Contact Connector Surface Mount, Right Angle
Datasheet
009155004541006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Spring Loaded
Mfr AVX Corp/Kyocera Corp
Series MOBO® 9155
Package Tape & Reel
Connector Type Battery Contact
Number of Contacts 4
Pitch 0.098" (2.50mm)
Number of Rows 1
Row Spacing -
Mounting Type Surface Mount, Right Angle
Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 009155
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000 pcs
Win Source Part Number 1380353-009155004541006
Ultra Librarian 3D Model Ultra Librarian 009155004541006 CAD Model

Description

The MOBO® 9155 is a battery contact connector manufactured by AVX Corp/Kyocera Corp.

  • Category: Connectors, Interconnects
  • Series: Rectangular Connectors>Spring Loaded
  • Pitch: 0.098" (2.50mm)
  • Contact Finish: gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Package: tape & reel
  • Contacts: 4
  • Material: beryllium copper
  • Mounting: surface mount, right angle
  • ECCN: EAR99
  • MSL: 3 (168 Hours)
