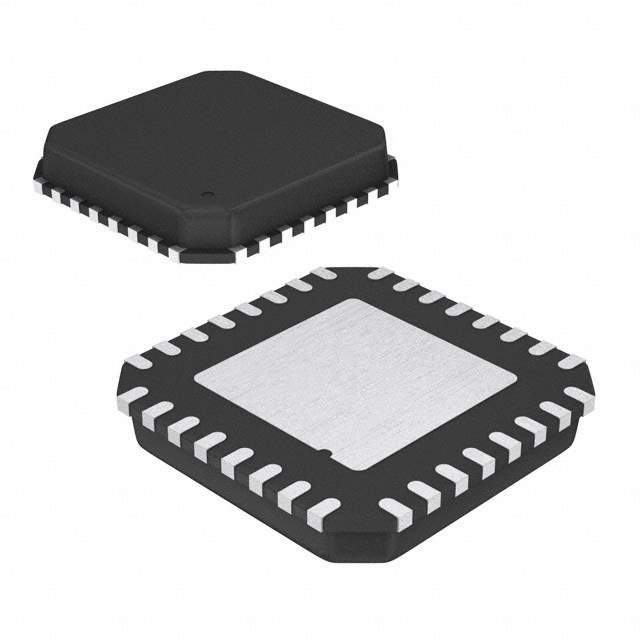

ATMEGA328P-MN Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Atmel
Packaging Bulk
Core Processor AVR
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 23
Program Memory Size 32KB (16K x 16)
Program Memory Type FLASH
EEPROM Size 1K x 8
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C
Mounting Surface Mount
Case / Package 32-VFQFN Exposed Pad
Supplier Device Package 32-VQFN (5x5)
Base Product Number ATMEGA328
ECCN EAR99
HTSUS 8542.31.0001
Other Part Number 2156-ATMEGA328P-MN,ATMATMATMEGA328P-MN
Standard Package 1
Win Source Part Number 1322462-ATMEGA328P-MN
Ultra Librarian 3D Model Ultra Librarian ATMEGA328P-MN CAD Model

Description

The Atmel ATMEGA328P-MN is an 8-bit microcontroller that operates @ a speed of 20MHz.

  • Speed: 20MHz
  • Mounting Type: Surface-Mount
  • Package: 32-VQFN (5x5)
  • Program Memory Size: 32KB (16K x 16)
  • Program Memory Type: FLASH
  • EEPROM Size: 1K x 8
  • RAM Size: 2K x 8
  • Data Converters: A/D 8x10b
  • Oscillator Type: Internal
  • Voltage Supply Range: 1.8V to 5.5V
  • Temperature Range: -40°C to 105°C
  • Connectivity: I2C, SPI, and UART/USART
  • Peripherals: Brown-out Detect/Reset, POR, PWM, and WDT
