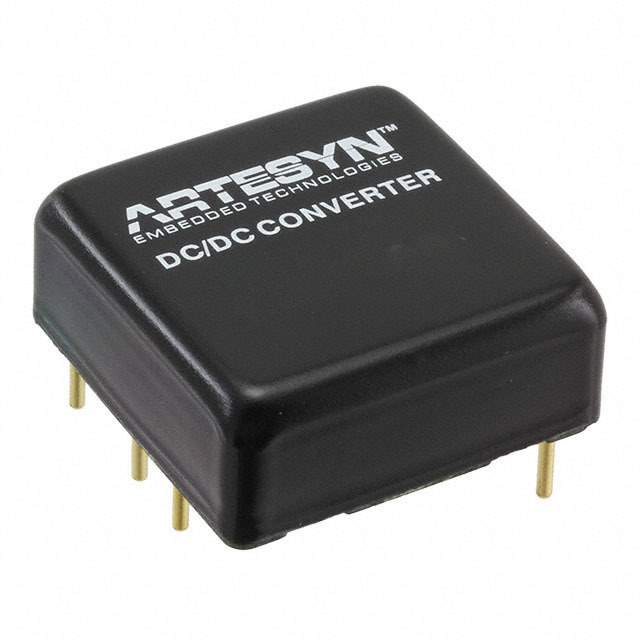

Same model may have multiple batches, images only for reference.

AXA00H36-L

Name: AXA00H36-L
Brand: Artesyn Embedded Technologies
SKU: 1335127
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXA00H36-L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 20W / Isolated Module DC DC Converter 1 Output 24V 835mA 18V - 75V Input
Datasheet	AXA00H36-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Artesyn Embedded Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	24V
Current - Output (Max)	835mA
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number	AXA00H
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	454-1626-5
Standard Package	10
Win Source Part Number	1335127-AXA00H36-L
Ultra Librarian 3D Model	Ultra Librarian AXA00H36-L CAD Model

Alternative Products

Description

The Artesyn Embedded Power 1335127-AXA00H36-L is a DC-DC converter that comes in a tube packaging.

Packaging: Tube
Type: Isolated module
Features: Remote on/off, OCP, and OTP
Size: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Application: ITE (Commercial)
Package: 10
Mounting: Through hole
Power: 20 W
Voltage Isolation: 1.5 kV
Outputs: One output
Maximum Output Current: 835mA
Input Voltage Range: 18V to 75V
Output Voltage: 24V
Efficiency: 88 percent
Temperature Range: -40°C to 85°C
