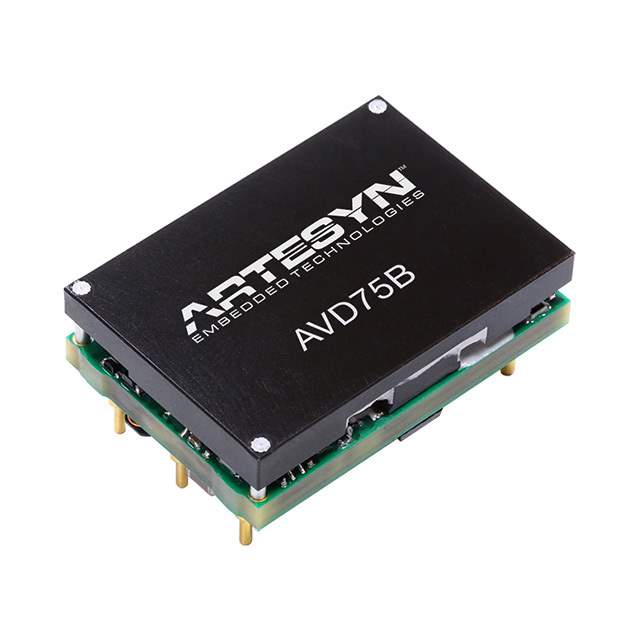

Same model may have multiple batches, images only for reference.

AVD75B-48S12B-6L

Name: AVD75B-48S12B-6L
Brand: Artesyn Embedded Technologies
SKU: 1337764
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AVD75B-48S12B-6L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 75W / Isolated Module DC DC Converter 1 Output 12V 6.25A 36V - 75V Input
Datasheet	AVD75B-48S12B-6L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Power
Series	AVD75B (75W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	6.25A
Power (Watts)	75 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93.3%
Mounting Type	Through Hole
Package / Case	Sixteenth Brick
Size / Dimension	1.30" L x 0.90" W x 0.47" H (33.0mm x 22.9mm x 12.0mm)
Supplier Device Package	Sixteenth Brick
Base Product Number	AVD75
Standard Package	280
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1337764-AVD75B-48S12B-6L
Ultra Librarian 3D Model	Ultra Librarian AVD75B-48S12B-6L CAD Model

Alternative Products

Description

The AVD75B series isolated module DC-DC converter is manufactured by Artesyn Embedded Power.

Power (Watts): 75W
Efficiency: 93.3%
Size / Dimension: 1.30" L x 0.90" W x 0.47" H (33.0mm x 22.9mm x 12.0mm)
Mounting Type: Through Hole
Temperature Range: -40°C to 85°C
Voltage - Input: 36V to 75V
Voltage - Output: 12V
Features: OVP, OTP, OCP, Remote On/Off
Package: Tray
Standard Package: 280
ECCN: EAR99
HTSUS: 8504.40.9580
