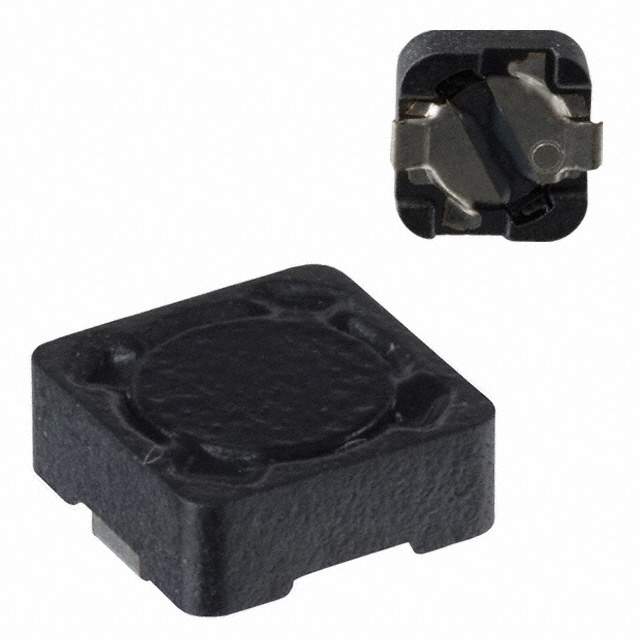

Same model may have multiple batches, images only for reference.

SPD74R-563M

Name: SPD74R-563M
Brand: API Delevan Inc.
SKU: 897060
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SPD74R-563M
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 56UH 1.1A 350 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors
Estimated Pruduction Lead Time	18 Weeks
Features	56 µH Shielded Wirewound Inductor 1.1 A 350mOhm Max Nonstandard
Manufacturer	API Delevan Inc.
Series	SPD74R
Package	Reel - TR
Operating Temperature Range	-55°C ~ 125°C
Mounting	Surface Mount
Package	Nonstandard
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	DN7611-1-ND, DN7611-2-ND, DN7611TR, SPD74R563M, SPD74R-563M TR 1000, DN7611CT, DN7611-1, DN7611DKR, DN7611-2
Quantity per package	1000
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	897060-SPD74R-563M
Ultra Librarian 3D Model	Ultra Librarian SPD74R-563M CAD Model

Alternative Products

Description

The SPD74R-563M is a 56 µH shielded wirewound inductor designed for use in various applications. It is manufactured by API Delevan Inc. and is available in reel packaging.

Inductance: 56 µH
Type: Shielded Wirewound
Packaging: Reel
Maximum Current: 1.1A
Maximum DC Resistance: 350mOhm
Mounting Type: Surface Mount
Package: Nonstandard
Temperature Range: -55°C to 125°C
