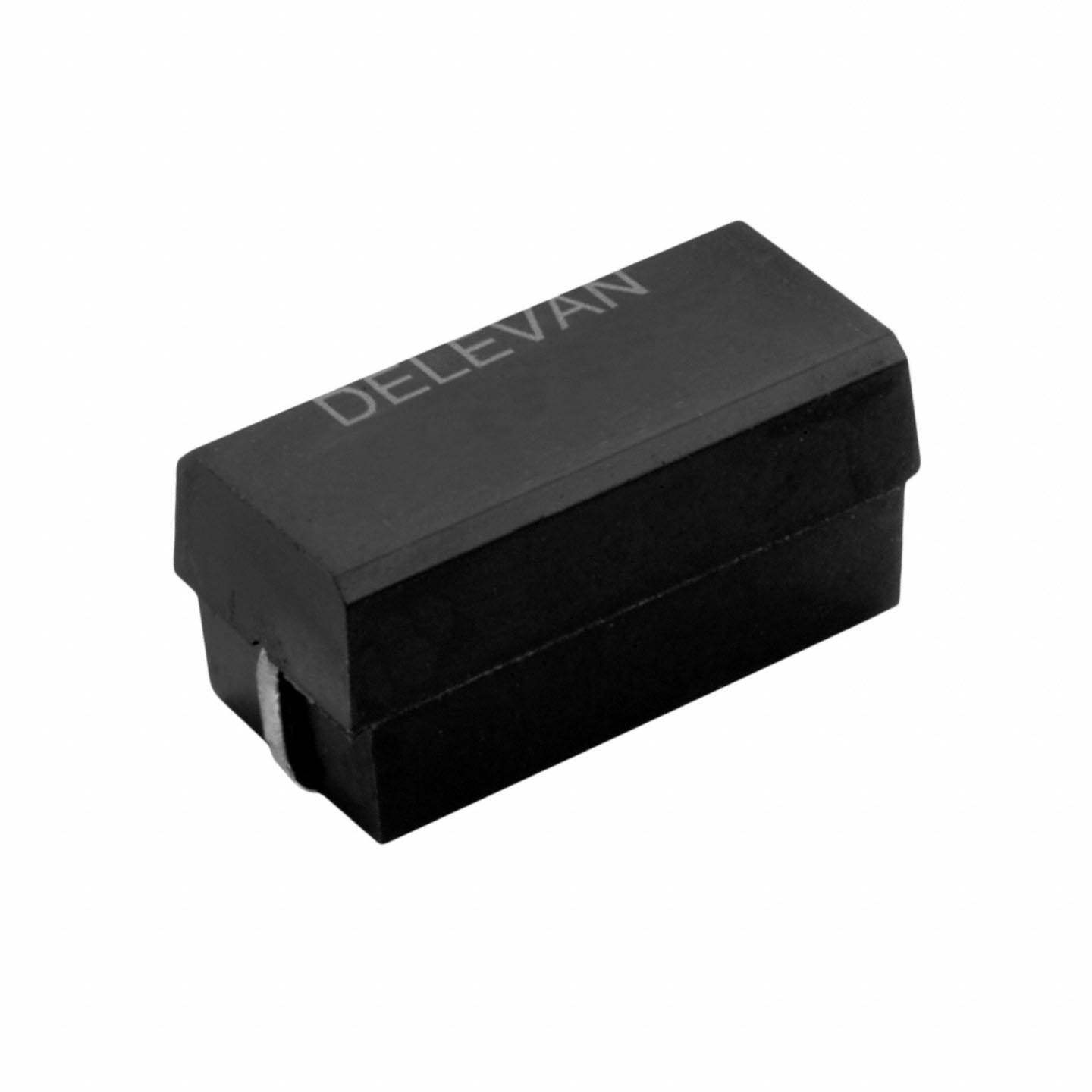

5500R-223K

Get a Quote

Part No	5500R-223K
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 22UH 6.43A 24 MOHM SMD
Datasheet	5500R-223K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Delevan
Part Status	Active
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±10%
Current Rating (Amps)	6.43 A
Current - Saturation (Isat)	3.65A
Shielding	Unshielded
DC Resistance (DCR)	24mOhm Max
Operating Temperature	-55°C ~ 130°C
Ultra Librarian 3D Model	Ultra Librarian 5500R-223K CAD Model

Alternative Products

Description

● Dimensions "A" and "C" and "G" are over the terminals.

● Operating Temperature Range -55°C to +130°C

● Current Rating at 85°C Ambient 45°C Temperature Rise

● Maximum Power Dissipation at +85°C: 1.166 Watts Maximum Inductance Measured @ 1 kHz with 0 ADC on Wayne Kerr 3245A, or equivalent.

● Incremental Current The amount of DC that decreases the Inductance by 5% maximum relative to the 0 ADC.

● Dielectric Withstanding Voltage Meets MIL-STD-202, Method 301, 1000 Vrms Minimum
