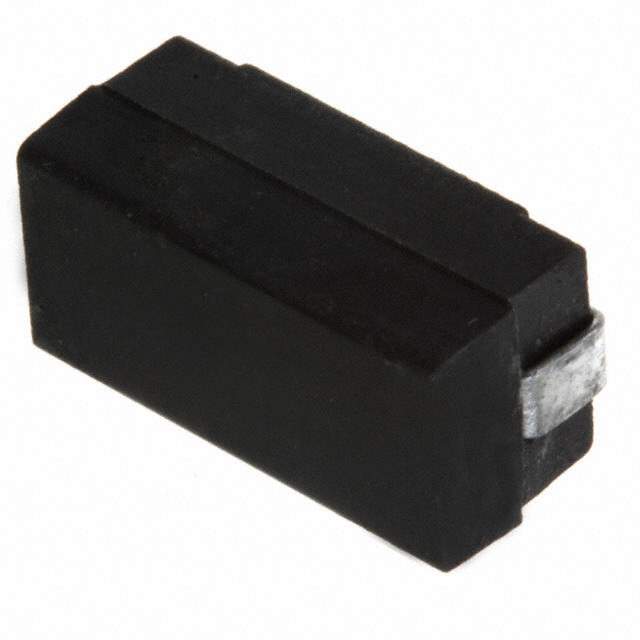

5022-561J Real Image
Same model may have multiple batches, images only for reference.

5022-561J

Part No 5022-561J
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 560NH 1.645A 135 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 20 Weeks
Features 560 nH Unshielded - Inductor 1.645 A 135mOhm Max Nonstandard
Manufacturer API Delevan Inc.
Series 5022
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 5022561J, DN2254TR, 5022-561J TR 800, DN2254CT
Quantity per package 800
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907035-5022-561J
Ultra Librarian 3D Model Ultra Librarian 5022-561J CAD Model

Description

The API Delevan Inc. 5022 series is a high-popularity inductor with a balance supply and demand status.

  • Manufacturer: API Delevan Inc.
  • Series: 5022
  • Package: Nonstandard
  • Mounting: Surface Mount
  • Inductance: 560nH Unshielded
  • Current Rating: 1.645A
  • DC Resistance (DCR): 135mOhm max
  • Operating Temperature: -55°C to 125°C
  • Quantity per Package: 800
  • Estimated Production Lead Time: 20 weeks
  • REACH Status: Unaffected
