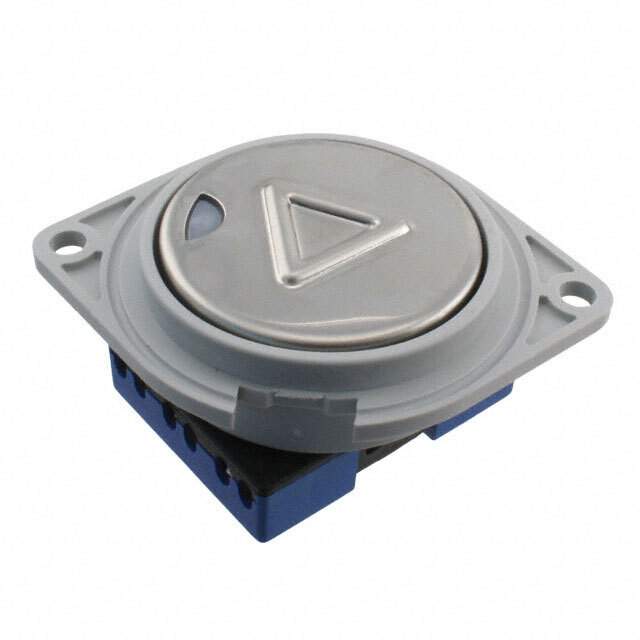

LPI5112R2XX1716 Real Image
Same model may have multiple batches, images only for reference.

LPI5112R2XX1716

Part No LPI5112R2XX1716
Manufacturer Apem Inc.
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPST 5A 12V / Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Rear
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr APEM Inc.
Series LPI
Package Tray
Mounting Type Panel Mount, Rear
Type Standard, Illuminated
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Current Rating (Amps) 5A (DC)
Voltage Rating - DC 12 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 12 VDC
Termination Style Screw Terminal
Ingress Protection IP40
Features Tactile Feedback
Panel Cutout Dimensions Circular - 44.10mm Dia
Temperature Range - Operating -20°C ~ 65°C
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number LPI5112
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 679-2365
Standard Package 15
Win Source Part Number 961424-LPI5112R2XX1716
Ultra Librarian 3D Model Ultra Librarian LPI5112R2XX1716 CAD Model

Description

The LPI series pushbutton switch is a DPST-NO/NC circuit switch.

  • Circuit: DPST-NO/NC
  • Switch Function: On-Mom, Off-Mom
  • Actuator Type: Illuminated, Round, Button, Flush
  • Feedback: Tactile
  • Actuator/Cap Color: White
  • Actuator Length: 4.32mm
  • Illumination Type: LED
  • Illumination Color: Red
  • Illumination Voltage: 12 VDC
  • Voltage Rating DC: 12 V
  • Current Rating: 5A
  • Termination Style: Screw Terminal
  • Mounting Type: Panel Mount, Rear
  • Packaging: Tray
  • Standard Package: 15
  • Operating Temperature: -20°C to 65°C
  • Ingress Protection: IP40
  • Mechanical Life: 1,000,000 cycles
