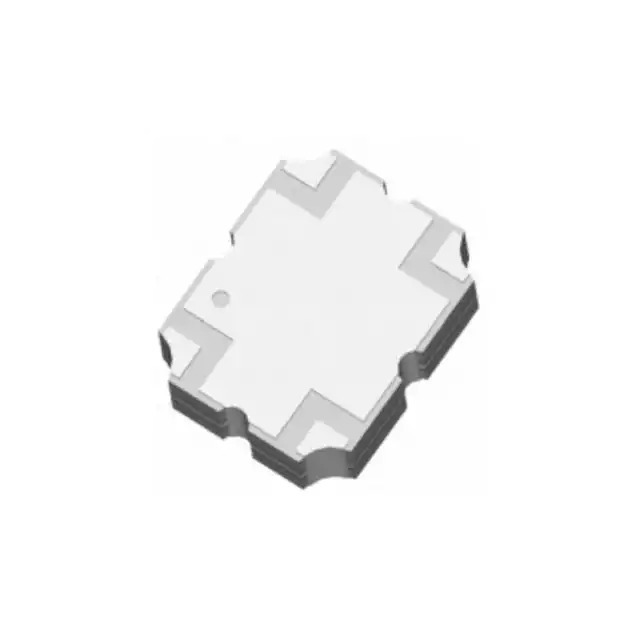

X4C30F1-30S Anaren
Same model may have multiple batches, images only for reference.

X4C30F1-30S

Part No X4C30F1-30S
Manufacturer Anaren
Catalog RF Directional Coupler
Description IC DIR COUPLR 2-4GHZ 30DB / RF Directional Coupler LTE, WiMAX 2GHz ~ 4GHz 30 ± 1.5dB 100W 4-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr TTM Technologies, Inc.
Series -
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 2GHz ~ 4GHz
Coupling Factor 30 ± 1.5dB
Applications LTE, WiMAX
Insertion Loss 0.075dB
Power - Max 100W
Isolation -
Return Loss 30dB
Package / Case 4-SMD, No Lead
Supplier Device Package -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.79.0000
Win Source Part Number 1356709-X4C30F1-30S
Ultra Librarian 3D Model Ultra Librarian X4C30F1-30S CAD Model

Description

The X4C30F1-30S is an RF directional coupler from TTM Technologies, Inc. It operates in the frequency range of 2GHz to 4GHz, making it suitable for applications such as LTE and WiMAX.

  • Frequency: 2GHz ~ 4GHz
  • Applications: LTE, WiMAX
  • Power - Max: 100W
  • Return Loss: 30dB
  • Insertion Loss: 0.075dB
  • Coupler Type: Standard
  • Coupling: 30 ± 1.5dB
  • Package / Case: 4-SMD, No Lead
  • Mounting Type: Surface Mount
