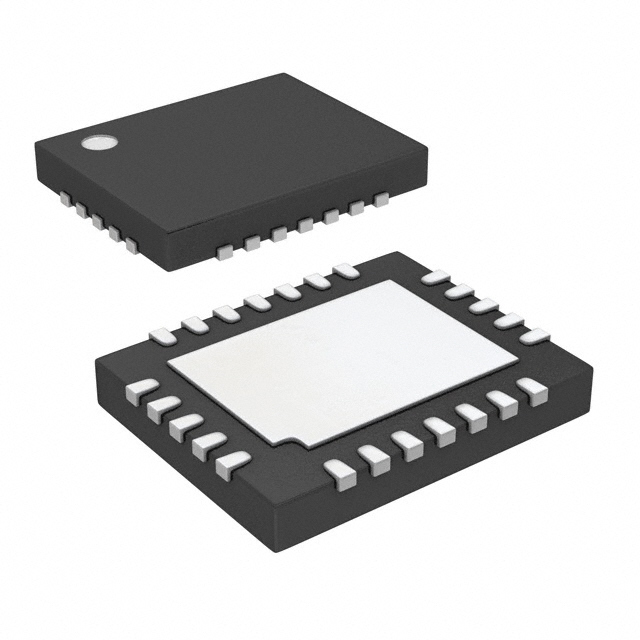

The LTC4215CUFD-2#TRPBF is a sophisticated Hot Swap™ controller integrated circuit (IC) designed by Analog Devices Inc., a leader in high-performance analog technology. This compact and feature-rich component is engineered to allow safe board insertion and removal from a live backplane. It is packaged in a QFN-24 (4x5mm) package and is available in tape and reel packaging, denoted by the suffix TRPBF, which is suitable for automated assembly processes.

The LTC4215CUFD-2#TRPBF is designed to control the power supply to electronic components, ensuring that systems operate reliably and are protected from various electrical hazards. It achieves this by controlling the gate voltage of an external N-channel MOSFET to gently power up capacitors, avoiding sparks, surges, and system glitches. This gradual power-up process, known as "soft-start," is essential for preventing damage to both the device being inserted and the backplane.

Featuring an adjustable overcurrent protection, this IC allows users to set the current limit to match the requirements of their specific application. The LTC4215CUFD-2#TRPBF also provides overvoltage, undervoltage, and overtemperature protection, ensuring the system is safeguarded against a wide range of potentially damaging conditions. Additionally, a circuit breaker function adds an extra layer of security by disconnecting the load in the event of a prolonged overcurrent condition.

The LTC4215CUFD-2#TRPBF is versatile and can be used in a variety of applications, including servers, network routers, switches, and industrial systems. Its I²C/SMBus interface allows for digital monitoring of voltage, current, and fault status, enabling intelligent system control and diagnostics. The device's precision capabilities and robust feature set make it an ideal choice for managing power in complex electronic systems where performance and reliability are paramount.

In summary, the LTC4215CUFD-2#TRPBF from Analog Devices Inc. is a high-performance Hot Swap controller that offers advanced protection features, precise control, and digital monitoring capabilities, making it an essential component for ensuring the safety and reliability of electronic systems.
