Analog Devices Inc. LTC2956CUD-2#TRPBF Product Overview

The LTC2956CUD-2#TRPBF from Analog Devices Inc. is a sophisticated power control IC designed to manage system power via pushbutton interface. This component is ideal for battery-powered and portable applications due to its ultra-low quiescent current and the ability to control system power without the need for a microcontroller.

Key Features

• Pushbutton On/Off Control: This IC allows users to turn their systems on and off with a simple pushbutton interface, making it user-friendly and intuitive for a wide range of applications.
• Adjustable Turn-On and Turn-Off Timers: The LTC2956CUD-2#TRPBF provides flexible configuration options with adjustable timers, allowing designers to tailor the power sequencing to their specific needs.
• Low Quiescent Current: With its ultra-low quiescent current, this IC helps to extend battery life, which is critical for portable and remote applications.
• Wide Input Voltage Range: It operates over a wide input voltage range, accommodating various power sources and ensuring compatibility with a broad range of products.

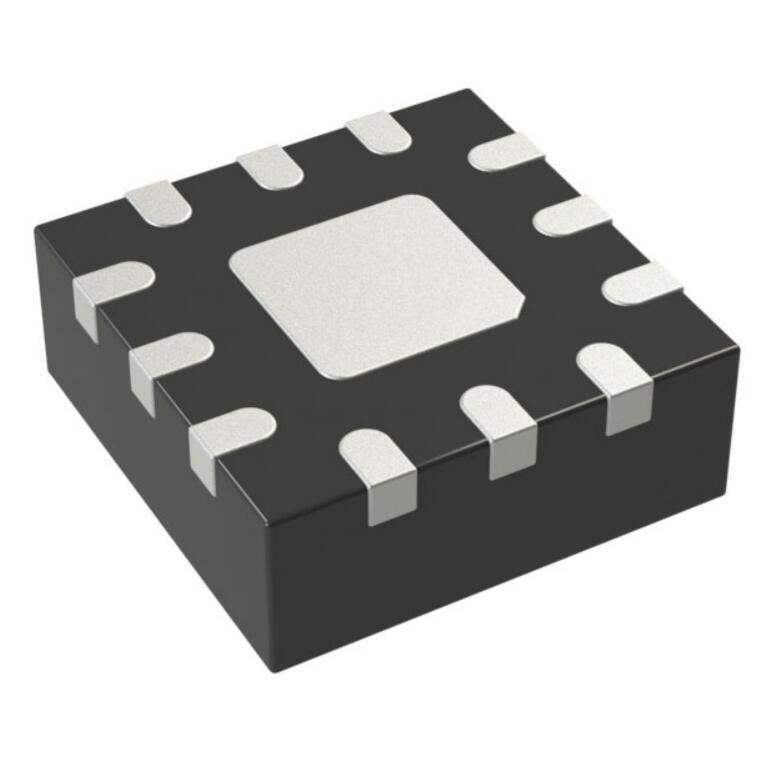

• Compact Package: Housed in a 12-lead QFN package, the LTC2956CUD-2#TRPBF is designed to save space on the PCB, allowing for more compact device designs.

Applications

The LTC2956CUD-2#TRPBF is versatile and can be used in numerous applications, including:

• Portable Instruments
• Battery-Powered Equipment
• Handheld Devices
• Wireless Sensors and IoT Devices
• Medical Devices

Technical Specifications

The device comes with several technical specifications that make it suitable for a wide range of uses:

• Operating Temperature Range: -40°C to +125°C
• Supply Voltage Range: 2.7V to 26.4V
• 12-Lead (3mm × 3mm) QFN Package

The LTC2956CUD-2#TRPBF from Analog Devices Inc. is a reliable and efficient solution for power management in modern electronic devices. Its ease of use, combined with low power consumption and a compact form factor, makes it an excellent choice for designers looking to optimize their power control systems.
