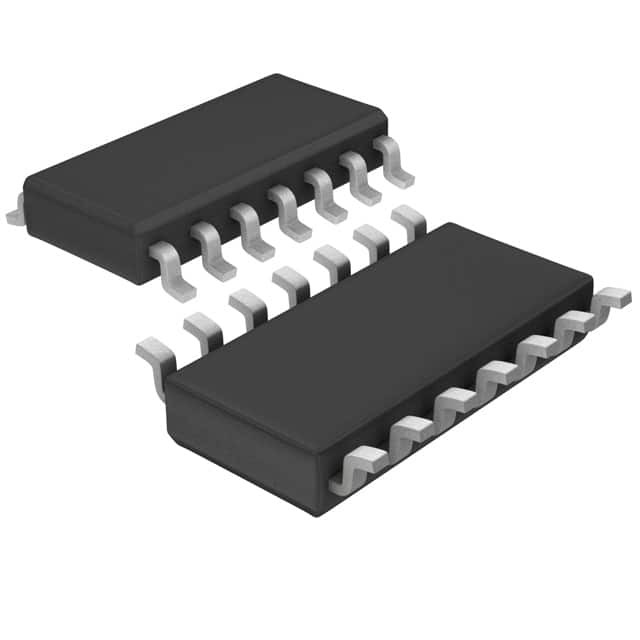

The LT1499HS#TRPBF from Analog Devices Inc. is a high-performance dual operational amplifier that combines speed and precision to meet the rigorous demands of a wide range of signal processing applications. This op-amp is well-suited for applications requiring both AC and DC precision, which includes telecommunication, test equipment, and sensor interfaces.

Key Features

• High Speed: With a slew rate of 10V/µs and a gain bandwidth product of 6.5MHz, this op-amp can handle high-speed signals with ease.
• Low Power Consumption: The LT1499HS#TRPBF operates with a supply current of just 1.1mA per amplifier, making it an excellent choice for power-sensitive applications.
• Wide Supply Range: It can operate from a supply voltage range of ±2.5V to ±15V, providing flexibility in various circuit designs.
• Output Swing: The output can swing within 1.5V of each supply rail, ensuring a wide dynamic range.
• Input Offset Voltage: It features a low input offset voltage, which minimizes error in precision applications.
• Stability: The amplifier is stable with capacitive loads up to 500pF, which is useful for driving capacitive loads without oscillation.

Applications

The LT1499HS#TRPBF is ideal for a variety of applications, including:

• Active Filters
• Fast Amplifiers
• Buffers
• Integrators or Differentiators
• Video and Cable Drivers
• ADC/DAC Buffers

Product Specifications

Overall, the LT1499HS#TRPBF is a robust, versatile op-amp that offers a compelling mix of speed and power efficiency, suitable for a multitude of electronic designs. Its small form factor and high reliability make it an excellent choice for both prototyping and mass production.
