Analog Devices Inc. HMC571LC5 GaAs pHEMT MMIC Mixer

The HMC571LC5 from Analog Devices Inc. is a high-performance gallium arsenide (GaAs) pseudomorphic high electron mobility transistor (pHEMT) monolithic microwave integrated circuit (MMIC) mixer. This device is designed to meet the demanding requirements of communication systems, offering excellent linearity and a broad frequency range, making it a versatile component for various RF and IF applications.

Key Features:

• Frequency Range: The HMC571LC5 operates over a wide frequency range, covering both RF and LO frequencies from 11 to 20 GHz, and IF frequencies from DC to 4 GHz. This wide range makes it suitable for a variety of high-frequency applications.
• Conversion Loss: With a typical conversion loss of 9 dB, this mixer maintains a balance between conversion efficiency and other performance metrics, such as isolation and linearity.
• LO/RF Isolation: The mixer provides excellent LO to RF isolation of 25 dB, which minimizes leakage between the local oscillator and the RF input, thus improving the overall performance of the system.
• LO/IF Isolation: Similarly, the LO to IF isolation is also high at 35 dB, ensuring that the local oscillator signal does not interfere with the intermediate frequency signal.
• Input IP3: It boasts a high input third-order intercept point (IP3) of 25 dBm, which indicates its ability to maintain linearity even at high input power levels, making it ideal for systems that require high dynamic range.

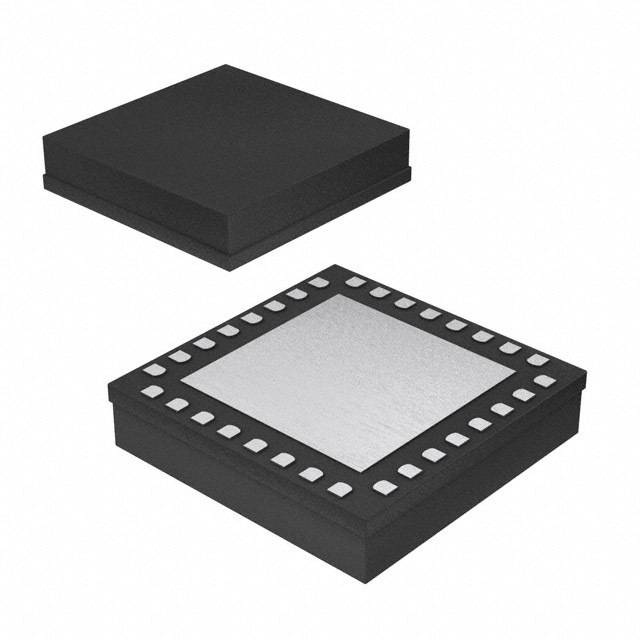

• Package: The HMC571LC5 is housed in a compact 5x5 mm SMT package, which allows for efficient use of PCB space and is suitable for surface mount technology (SMT) assembly processes.

Applications:

The HMC571LC5 is well-suited for a variety of applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Test Equipment and Sensors
• Military & Space
• Satellite Communications
• Fiber Optic Applications

With its robust performance and flexibility, the HMC571LC5 from Analog Devices Inc. is an excellent choice for designers looking to enhance the capabilities of their high-frequency communication systems.
