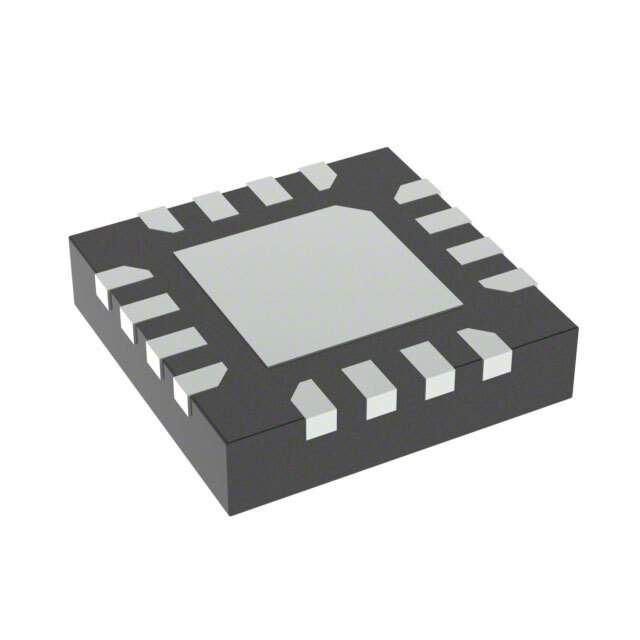

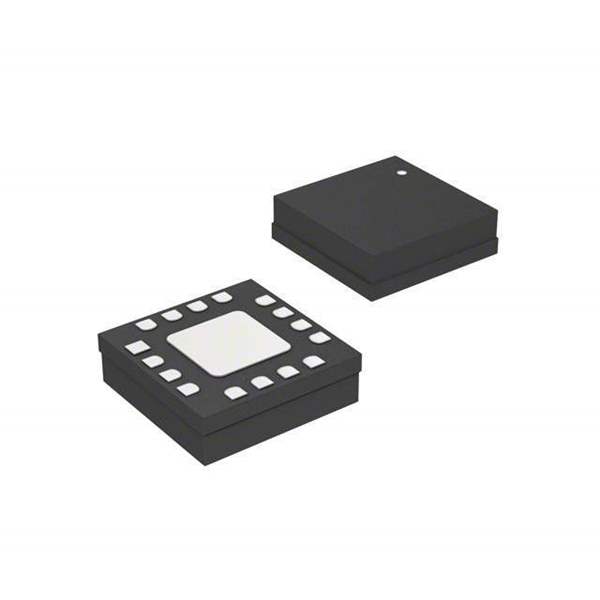

The HMC451LC3TR from Analog Devices Inc. is a state-of-the-art GaAs MMIC PHEMT Medium Power Amplifier that operates in the frequency range of 5.5 to 18 GHz. Packaged in a compact 3x3 mm ceramic QFN package, this amplifier is designed to deliver excellent performance with a high gain, output power, and efficiency, making it an ideal choice for a wide range of applications including point-to-point radios, VSAT, military & space, and test instrumentation.

Key Features

• Frequency Range: The HMC451LC3TR operates over a broad frequency range of 5.5 to 18 GHz, which allows it to be used in a variety of RF and microwave applications.
• High Gain: With a high gain of 21 dB, this amplifier can significantly increase the strength of an input signal without adding excessive noise, ensuring clear signal transmission.
• Output Power: It provides a saturated output power of +29 dBm, which translates to strong signal output capabilities.
• Power Added Efficiency: The device offers a power added efficiency (PAE) of 20%, making it an energy-efficient choice for high-performance systems.
• Package: The RoHS compliant 3x3 mm ceramic QFN package is designed for surface mount technology (SMT), which allows for efficient assembly and integration into various circuit designs.

Applications

• Point-to-point and point-to-multipoint radios
• Very Small Aperture Terminal (VSAT) systems
• Military radar, ECM, and communication systems
• Space and satellite communication equipment
• Test instrumentation and sensors

Product Specifications

The HMC451LC3TR by Analog Devices Inc. is a robust and versatile medium power amplifier that offers superior performance for advanced RF and microwave systems. Its extensive frequency range, high gain, and efficient output power make it a top choice for designers looking to enhance their communication and signal processing applications.
