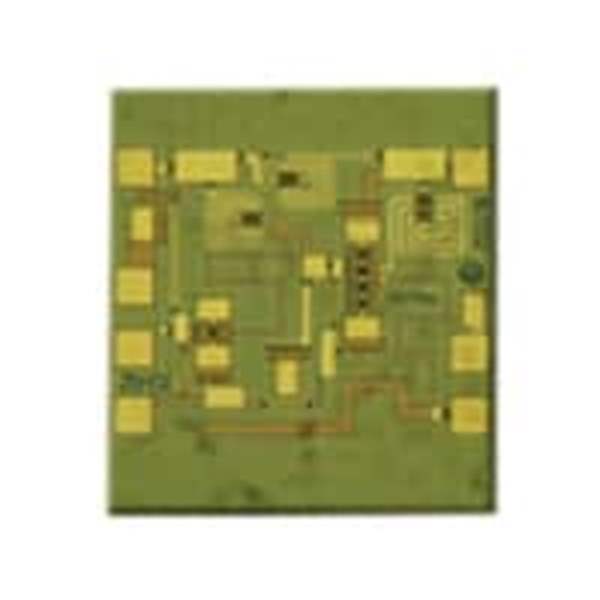

The HMC442 from Analog Devices Inc. is a high-performance, passive double-balanced mixer that offers a wide frequency range and excellent isolation characteristics. It is a versatile component designed for RF and microwave applications where a robust and reliable mixing capability is required.

Key Features

• Frequency Range: The HMC442 operates over a broad frequency range, making it suitable for diverse applications, from IF (Intermediate Frequency) baseband to high-frequency RF systems.
• High Isolation: With superb isolation between its ports, the HMC442 ensures minimal leakage and crosstalk, a critical feature for complex signal environments.
• Conversion Loss: The mixer is engineered to have low conversion loss, which enhances the overall efficiency of the signal conversion process.
• LO/RF Isolation: The local oscillator to RF isolation is particularly high, which minimizes the potential for self-mixing and associated performance degradation.
• Package: The HMC442 is available in a compact and durable package, making it easy to integrate into a variety of circuit designs.

Applications

The HMC442 is ideal for use in a range of applications, including but not limited to:

• Test and measurement equipment
• Military and space applications
• Point-to-point and point-to-multipoint radios
• Communication systems
• Electronic warfare and radar systems

Technical Specifications

In summary, the HMC442 from Analog Devices Inc. is a state-of-the-art passive mixer providing exceptional performance for a wide range of RF and microwave applications. Its combination of wide frequency range, high isolation, and low conversion loss makes it a powerful component for any signal processing chain.
