The HMC253QS24, crafted by the renowned Analog Devices Inc., is a state-of-the-art non-reflective SP6T (Single Pole, Six Throw) switch that operates within the frequency range of DC to 3 GHz. This high-performance component is designed to cater to a wide array of RF and microwave applications, making it a versatile choice for engineers and designers in the telecommunications and aerospace industries, as well as for test equipment and military applications.

The HMC253QS24 boasts an impressive insertion loss of typically 1.5 dB at 2 GHz, ensuring minimal signal attenuation and maintaining signal integrity across its operational bandwidth. Furthermore, the switch features high isolation between ports, typically 45 dB at 2 GHz, which is critical for preventing signal leakage and ensuring distinct signal paths in complex RF systems.

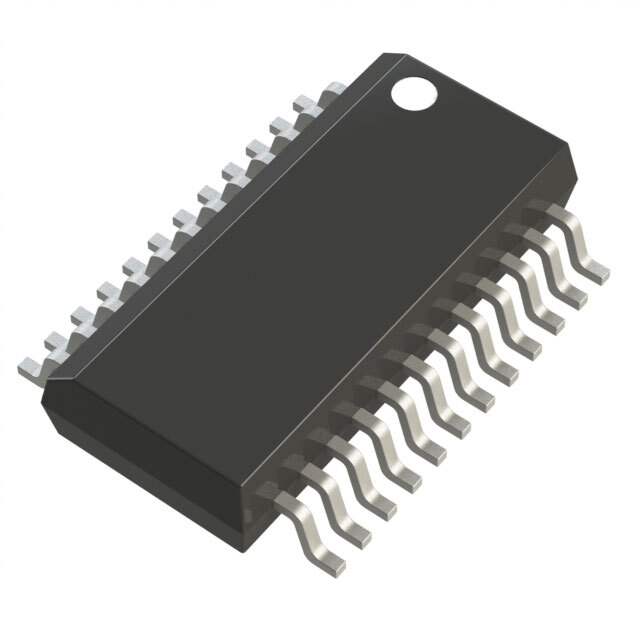

This switch is encapsulated in a compact QSOP package with 24 leads, making it an ideal solution for space-constrained applications. The HMC253QS24 is designed for a 50 Ohm system, ensuring compatibility with standard RF systems and simplifying the integration process for designers. With a non-reflective design, this switch minimizes signal reflections that can degrade system performance, providing a clear advantage in RF signal routing.

Powered by a single positive control voltage ranging from +3 to +5 V, the HMC253QS24 offers ease of use and flexibility in various supply environments. The switch's control interface is TTL compatible, allowing for straightforward integration with digital systems. Its fast switching speed, typically 50 ns, enables rapid signal routing, which is essential for applications requiring quick response times, such as in electronic warfare and radar systems.

Overall, the HMC253QS24 from Analog Devices Inc. is a robust and reliable component that provides superior performance for demanding RF applications. Its low insertion loss, high isolation, and fast switching capabilities make it a top choice for engineers looking to enhance their systems' efficiency and effectiveness.
