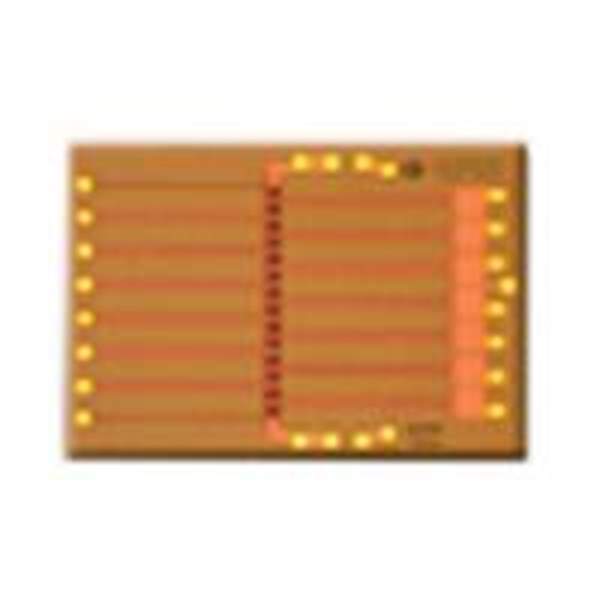

The HMC247 is a high-performance, versatile double-balanced mixer designed by Analog Devices Inc., a leader in the semiconductor industry. This device is part of the Hittite microwave products from Analog Devices and is renowned for its exceptional quality and reliability.

Constructed using GaAs MMIC technology, the HMC247 offers a wide frequency range, making it suitable for a variety of RF and IF applications. It is commonly used in telecommunications, test equipment, and military systems due to its ability to provide excellent isolation between ports and a broad dynamic range.

Key Features:

• Frequency Range: The mixer operates over a wide frequency range, with the RF and LO frequencies from 6 GHz to 16 GHz and the IF frequency from DC to 4 GHz, catering to a broad spectrum of applications.
• LO/RF Isolation: The HMC247 ensures superior isolation of 45 dB typical, which minimizes leakage between the LO and RF ports and enhances overall system performance.
• Conversion Loss: With a typical conversion loss of 9 dB, this mixer maintains a balance between conversion efficiency and linearity.
• Input IP3: The HMC247 boasts an impressive third-order intercept point (IP3) of 25 dBm, indicating its ability to handle high power levels without significant distortion.
• Package: The device is available in a compact and robust die package, allowing for flexible integration into various circuit designs.

Applications:

• Point-to-Point and Point-to-Multipoint Radios
• Test Equipment and Sensors
• Military & Space
• Fixed Wireless Access
• Wireless Infrastructure

With its robust performance and flexibility, the HMC247 from Analog Devices Inc. is an excellent choice for designers looking to create sophisticated RF systems that require high-quality signal processing. Analog Devices Inc. provides detailed technical documentation and support to ensure seamless integration and optimal performance of the HMC247 in your RF design projects.
