EVAL-ADUM5020EBZ Product Overview

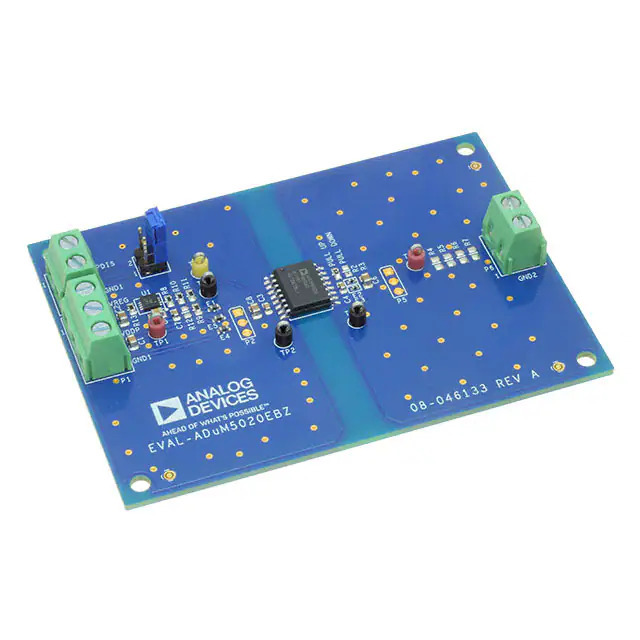

The EVAL-ADUM5020EBZ is a specialized evaluation board from Analog Devices Inc., designed to showcase the features and capabilities of the ADuM5020, an isolated DC-to-DC converter. This innovative product provides both isolation and power, making it an ideal solution for a variety of industrial, healthcare, and communication applications where isolation is a critical requirement.

Key Features

• Integrated Isolation: The ADuM5020 chip offers 5000 V RMS isolation for 1 minute, providing safety and reliability in applications that require electrical isolation between the input and output.
• High Efficiency: The device is designed for high efficiency, capable of up to 90% power conversion efficiency, which helps to minimize heat generation and power loss.
• Compact Size: The EVAL-ADUM5020EBZ board is compact, making it easy to incorporate into various system designs without requiring a lot of space.
• Flexible Input Voltage: It supports a wide input voltage range, typically from 2.7 V to 5.5 V, allowing it to be used with a variety of power sources.
• Regulated Output Voltage: The output voltage is regulated to 3.3 V or 5 V, selectable via onboard settings, providing a stable power supply for downstream components.

Applications

The EVAL-ADUM5020EBZ is suitable for a range of applications that require isolated power supplies, such as:

• Isolated sensor interfaces
• Industrial process controls
• Medical equipment
• Isolated data acquisition systems
• Telecommunications equipment

Easy to Use

This evaluation board is designed for user-friendliness, featuring accessible test points, and it is fully assembled and tested, allowing for immediate use upon receipt. Engineers and developers can quickly integrate the EVAL-ADUM5020EBZ into their systems to evaluate the ADuM5020 chip's performance in real-world conditions.

Support and Resources

Analog Devices Inc. provides comprehensive support for the EVAL-ADUM5020EBZ, including detailed documentation, application notes, and reference designs. This ensures that users can maximize the utility of the evaluation board and the ADuM5020 chip in their specific applications.
