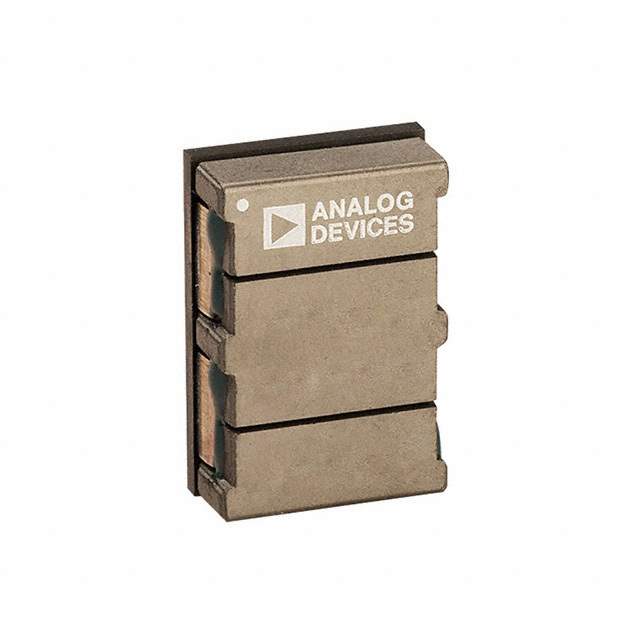

The LTM4700IY#PBF from Analog Devices Inc. is a high-performance, dual 50A or single 100A step-down µModule (micromodule) regulator with an integrated heat sink for enhanced thermal performance. This advanced power solution is designed to meet the demanding power requirements of high-end processors, FPGAs, GPUs, and system-on-chip (SoC) applications in computing, networking, and communications infrastructure.

Key Features

• High Efficiency: The LTM4700IY#PBF features state-of-the-art power conversion technology, offering high efficiency and reducing the reliance on airflow.
• Integrated Heat Sink: The device includes a built-in heat sink that significantly improves thermal performance, allowing for cooler operation and increased power density.
• Flexible Configuration: It can be configured as a dual 50A or single 100A output regulator, providing design flexibility for various applications.
• Advanced Digital Features: Equipped with PMBus/I2C-based digital interface for system telemetry and control, enabling real-time monitoring of voltage, current, temperature, and fault status.
• Compact Design: The LTM4700IY#PBF is packaged in a small form factor, making it ideal for space-constrained applications.

Specifications

• Input Voltage Range: 4.5V to 16V
• Output Voltage Range: 0.5V to 1.8V
• Output Current: Up to 50A per channel or 100A in parallel mode
• Operating Temperature Range: -40°C to 125°C
• Package: BGA with integrated heat sink for improved thermal performance

Applications

• Data Center Servers
• Telecommunication and Networking Equipment
• Industrial and Medical Equipment
• High-Density Computing Applications

The LTM4700IY#PBF is a testament to Analog Devices Inc.'s commitment to providing innovative power management solutions that address the needs of modern electronic systems. With its exceptional efficiency, thermal management, and digital control features, this µModule regulator is an excellent choice for designers looking to optimize power delivery in their high-performance applications.
