Analog Devices AD7617BSTZ Data Acquisition System

The AD7617BSTZ is a high-performance, multi-channel data acquisition system (DAS) from Analog Devices Inc., a leading company in the field of high-performance analog technology. This precision device is designed to cater to a wide array of applications that require accurate data conversion, including industrial data acquisition, medical imaging, and energy management systems.

At the heart of the AD7617BSTZ is a 16-bit, dual simultaneous sampling, analog-to-digital converter (ADC) that provides a maximum sample rate of 1 MSPS (mega-samples per second). The device features 16 single-ended or 8 differential input channels, which are software-configurable, allowing for flexible use in various system configurations. This versatility makes it an ideal choice for systems that need to monitor multiple signals or various sensor types simultaneously.

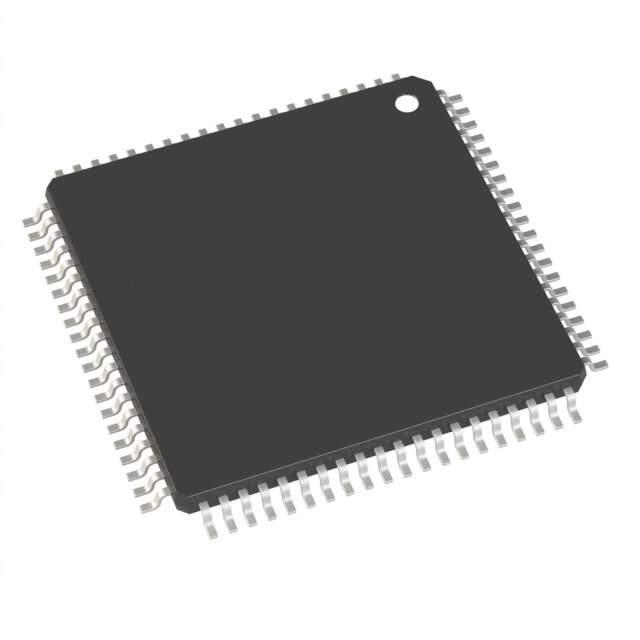

The AD7617BSTZ is encapsulated in a compact LQFP-64 (Low Profile Quad Flat Package) that minimizes the footprint on the PCB (Printed Circuit Board) and is suitable for space-constrained applications. Additionally, the device operates over a wide temperature range, ensuring reliable performance under varying environmental conditions.

Key features of the AD7617BSTZ include:

• 16-bit resolution with no missing codes
• Dual simultaneous sampling ADCs
• Up to 1 MSPS per channel sampling rate
• 16 single-ended or 8 differential input channels
• Software-configurable analog input types
• Integrated analog input buffers
• Flexible power supply ranging from 2.5 V to 5.5 V
• Overvoltage protection for robust signal acquisition
• Integrated precision reference and reference buffer
• Advanced digital filtering capabilities
• Serial (SPI) and parallel interface options

For enhanced signal integrity, the AD7617BSTZ includes an internal reference and buffer, which reduces the need for external components and simplifies the design process. The device also provides advanced digital filtering options to improve signal-to-noise ratio and reduce data acquisition noise in challenging environments.

Engineers and system designers can rely on the robustness and precision of the AD7617BSTZ for their critical data acquisition needs. The combination of high-speed, high-resolution ADCs, multiple input channels, and comprehensive features makes this device a powerful and flexible solution for a wide range of data acquisition applications.
