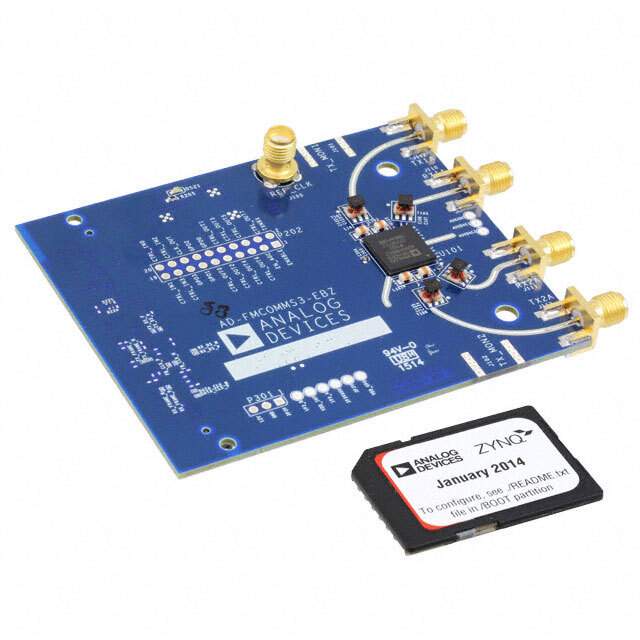

AD-FMCOMMS3-EBZ RF Agile Transceiver™ Development Board

The AD-FMCOMMS3-EBZ from Analog Devices Inc. is a high-performance, software-defined radio (SDR) module designed for RF enthusiasts, researchers, and industry professionals seeking to explore the world of wireless communication. This versatile development board is built around the AD9361 RF Agile Transceiver, a highly integrated device capable of covering a wide frequency range from 70 MHz to 6 GHz.

Featuring a 2x2 MIMO (Multiple Input, Multiple Output) configuration, the AD-FMCOMMS3-EBZ board enables users to implement complex wireless systems that require high data rates and reliable connectivity. The transceiver itself is capable of channel bandwidths from less than 200 kHz to 56 MHz, which makes it suitable for a variety of applications, including but not limited to, cellular, military, and space communication systems.

The AD-FMCOMMS3-EBZ is designed to plug into the FPGA development boards that support the FMC (FPGA Mezzanine Card) standard. This allows it to interface with a host of FPGA platforms, providing users with the flexibility to develop and test a wide range of RF solutions. The board includes a reference design integrating both hardware and software components, which helps to reduce development time and allows for rapid prototyping.

Key features of the AD-FMCOMMS3-EBZ include:

• Wide tuning range: 70 MHz to 6 GHz
• High bandwidth: Up to 56 MHz of instantaneous bandwidth
• 2x2 MIMO configuration: For improved signal quality and data rates
• FMC connector: Ensuring compatibility with standard FPGA development boards
• Integrated synthesizers: For lower bill of materials costs and simplified design
• Open-source reference design: Facilitating easy customization and development

Whether you are developing a commercial product or conducting academic research, the AD-FMCOMMS3-EBZ provides a robust platform for exploring the full potential of modern RF systems. Its combination of wide frequency range, high bandwidth, and integration with FPGAs makes it an ideal choice for anyone looking to push the boundaries of wireless communication technology.
