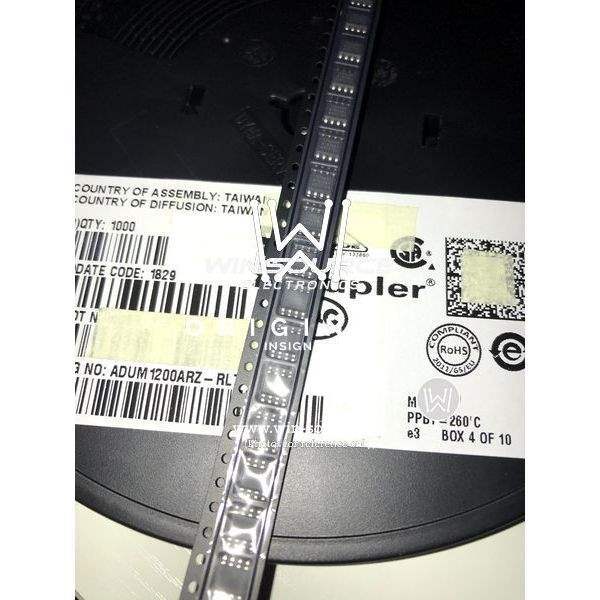

ADUM1200ARZ-RL Digital Isolator by Analog Devices Inc.

The ADUM1200ARZ-RL is a high-performance digital isolator designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This component is part of the ADUM1200 series and is engineered to provide superior isolation in a wide range of applications, including industrial, medical, and consumer electronics.

Key Features:

• Dual-Channel Isolation: The ADUM1200ARZ-RL offers two independent isolation channels, which can be used to isolate digital signals in both directions, providing flexibility in system design.
• iCoupler® Technology: Utilizing Analog Devices' patented iCoupler® technology, this digital isolator ensures reliable signal transfer across the isolation barrier while maintaining low power consumption and high data integrity.
• High Data Rate: The device supports data rates up to 10 Mbps, making it suitable for high-speed communication protocols without compromising signal quality.
• High-Voltage Isolation: With an isolation voltage rating of 2500 Vrms, the ADUM1200ARZ-RL provides robust protection against high voltage transients and enables safe operation in electrically noisy environments.
• Compact SOIC Package: The component comes in a small-outline integrated circuit (SOIC) package with a standard footprint, making it ideal for space-constrained applications.
• Wide Temperature Range: It operates effectively over a broad temperature range, from -40°C to +105°C, ensuring reliable performance in extreme conditions.
• Lead-Free and RoHS Compliant: In alignment with environmental standards, the ADUM1200ARZ-RL is lead-free and complies with the Restriction of Hazardous Substances (RoHS) directive.

Applications:

The versatility of the ADUM1200ARZ-RL digital isolator makes it suitable for a variety of applications, including:

• Industrial control systems
• Medical equipment with stringent safety requirements
• Isolated sensor interfaces
• Isolated RS-232/RS-422/RS-485 interfaces
• Power supply control and monitoring

In summary, the ADUM1200ARZ-RL from Analog Devices Inc. is a robust, high-speed digital isolator that offers excellent performance and reliability for applications requiring electrical isolation. Its advanced features and compliance with environmental standards make it a preferred choice for designers and engineers seeking to enhance the safety and functionality of their electronic systems.
