The ADSC584WCBCZ4A12 from Analog Devices Inc. is a high-performance audio processor with a dual-core SHARC+ DSP and an Arm Cortex-A5 processor. It is designed for a wide range of audio applications, including professional audio equipment, automotive audio systems, and consumer electronics.

The SHARC+ DSP is a floating-point processor that is optimized for high-performance audio/floating-point applications. It features a large, on-chip, static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). The Arm Cortex-A5 processor is a general-purpose processor that is well-suited for running operating systems and user applications.

The ADSC584WCBCZ4A12 also includes a set of industry-leading system peripherals and memory, such as a high-performance pipelined FFT/IFFT engine, FIR, IIR, HAE, and SINC offload engines. These peripherals can be used to accelerate a wide range of audio processing tasks, such as echo cancellation, noise reduction, and sound enhancement.

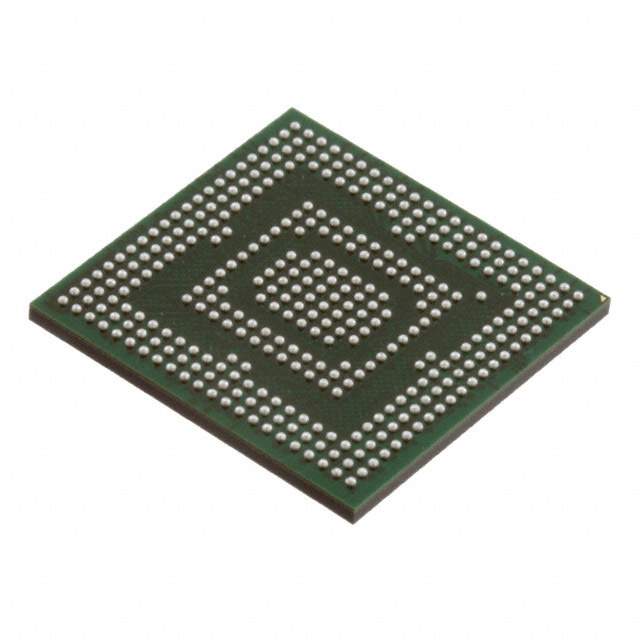

The ADSC584WCBCZ4A12 is AEC-Q100 qualified for automotive applications, making it ideal for use in automotive audio systems. It is also available in a CSPBGA package, which makes it suitable for space-constrained applications.

Key features

• Dual-core SHARC+ DSP and Arm Cortex-A5 processor
• 640KB SRAM and 512KB program memory
• High-performance pipelined FFT/IFFT engine, FIR, IIR, HAE, and SINC offload engines
• AEC-Q100 qualified for automotive applications
• Available in a CSPBGA package

Applications

• Professional audio equipment
• Automotive audio systems
• Consumer electronics
• Industrial automation
• Medical devices
• Aerospace and defense

Product description

The ADSC584WCBCZ4A12 is a powerful and versatile audio processor that is well-suited for a wide range of applications. It offers a combination of high performance, low power consumption, and a small footprint, making it ideal for use in space-constrained applications.

The dual-core SHARC+ DSP and Arm Cortex-A5 processor provide the processing power needed to handle demanding audio applications. The SHARC+ DSP is optimized for high-performance audio/floating-point applications, while the Arm Cortex-A5 processor is well-suited for running operating systems and user applications.

The ADSC584WCBCZ4A12 also includes a set of industry-leading system peripherals and memory, such as a high-performance pipelined FFT/IFFT engine, FIR, IIR, HAE, and SINC offload engines. These peripherals can be used to accelerate a wide range of audio processing tasks, such as echo cancellation, noise reduction, and sound enhancement.

The ADSC584WCBCZ4A12 is AEC-Q100 qualified for automotive applications, making it ideal for use in automotive audio systems. It is also available in a CSPBGA package, which makes it suitable for space-constrained applications.

Benefits

• High performance: The dual-core SHARC+ DSP and Arm Cortex-A5 processor provide the processing power needed to handle demanding audio applications.
• Low power consumption: The ADSC584WCBCZ4A12 is designed to be energy efficient, making it ideal for use in battery-powered applications.
• Small footprint: The ADSC584WCBCZ4A12 is available in a CSPBGA package, which makes it suitable for space-constrained applications.
• Versatility: The ADSC584WCBCZ4A12 can be used in a wide range of applications, including professional audio equipment, automotive audio systems, consumer electronics, industrial automation, medical devices, and aerospace and defense.

Examples of use

• The ADSC584WCBCZ4A12 can be used in professional audio equipment to implement high-end features such as surround sound processing, noise reduction, and echo cancellation.
• The ADSC584WCBCZ4A12 can be used in automotive audio systems to implement features such as adaptive volume control, road noise cancellation, and voice recognition.
• The ADSC584WCBCZ4A12 can be used in consumer electronics products such as smart speakers, headphones, and home theater systems to implement features such as voice control, active noise cancellation, and spatial audio.
• The ADSC584WCBCZ4A12 can be used in industrial automation applications to implement features such as machine vision, speech recognition, and motor control.
• The ADSC584
