Product Overview: ADP8140ACPZ-2-R7 from Analog Devices Inc.

The ADP8140ACPZ-2-R7 is a high-performance, integrated backlight driver from Analog Devices Inc., designed to enhance the visual quality and efficiency of display systems. This advanced component is engineered to drive LED backlights in a wide array of LCD panels, making it an ideal choice for portable devices such as smartphones, tablets, and laptops, as well as for automotive displays and industrial monitors.

Key Features

• High Efficiency: The ADP8140ACPZ-2-R7 is built with efficiency in mind, featuring a high efficiency rate that reduces power consumption and extends battery life in portable applications.
• Integrated Boost Converter: Equipped with an integrated boost converter, this driver supports a wide input voltage range, ensuring consistent performance even under varying power supply conditions.
• Multiple LED String Support: Capable of driving multiple LED strings, the device provides uniform brightness across the display and allows for fine-tuning of individual string current to achieve precise backlighting control.
• Dimming Capability: With advanced dimming capabilities, the ADP8140ACPZ-2-R7 offers a broad dimming range, enabling dynamic control over the backlight brightness to suit different environmental lighting conditions.
• Protection Features: Built-in protection features such as overvoltage, overtemperature, and LED open/short circuit protection safeguard the device and the display system from potential damage.

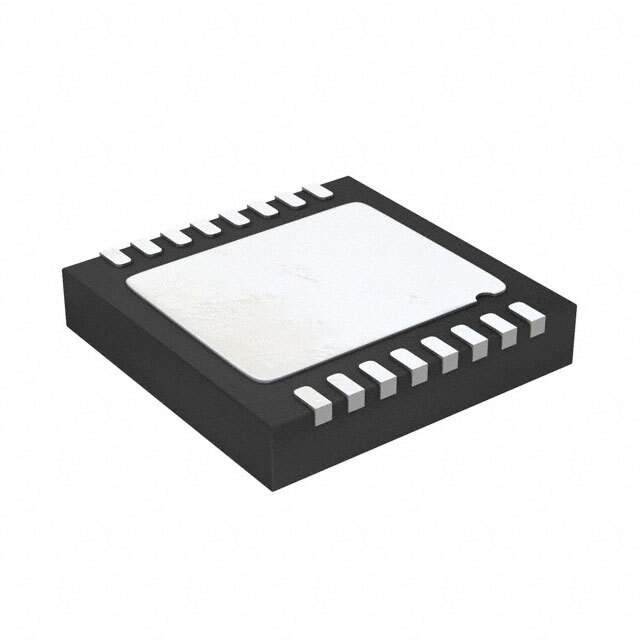

• Compact Package: The device comes in a compact LFCSP package, which is optimal for space-constrained applications without compromising performance.

Applications

The ADP8140ACPZ-2-R7's versatility makes it suitable for a diverse range of applications, including:

• Smartphones and Tablets
• Notebooks and Ultrabooks
• Automotive Infotainment and Dashboard Displays
• Industrial and Medical Monitors

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the ADP8140ACPZ-2-R7 is no exception. Customers can expect consistent performance and durability from this product, backed by the reputation of a leading semiconductor manufacturer.
