ADP5585ACBZ-04-R7: A Versatile I/O Expander and Keypad Matrix

The ADP5585ACBZ-04-R7 is a state-of-the-art integrated circuit (IC) from the renowned manufacturer Analog Devices Inc. This IC is designed to provide an exceptional I/O expansion solution for a wide range of applications, particularly focusing on mobile devices, industrial control panels, and any embedded system requiring additional I/O capabilities or a keypad interface.

Key Features

• Keypad Matrix: The ADP5585ACBZ-04-R7 can interface with up to a 10x8 keypad matrix, translating key presses into an interrupt signal for the host processor. This feature simplifies the design of user interfaces in systems requiring a physical keypad.
• I/O Expansion: It also offers 19 GPIOs, which can be configured as either inputs or outputs. This flexibility allows designers to add more peripheral devices and control signals without the need for additional processors or complex wiring.
• Event FIFO: The device contains a First-In, First-Out (FIFO) event buffer that records and stores system events such as key presses and GPIO changes, ensuring no event is missed by the host processor.
• Interrupt Output: An interrupt output signal is provided to alert the host processor of events, minimizing the need for the processor to continuously poll the expander, thus saving power and resources.
• Robust Interface: It supports I²C interface, which is widely used for communication between ICs, ensuring easy integration with most microcontrollers and processors.
• Low Power Consumption: Designed with power efficiency in mind, it is ideal for battery-powered applications where power conservation is critical.

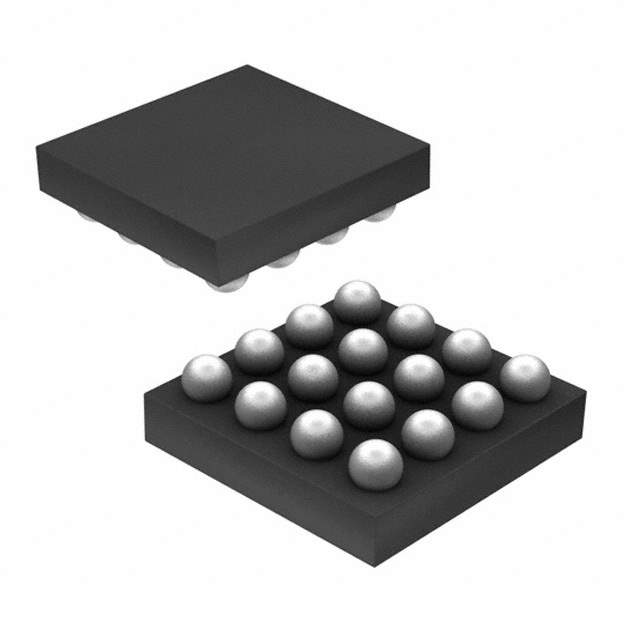

• Packaging: The ADP5585ACBZ-04-R7 comes in a compact WLCSP package, which is suitable for space-constrained applications.

Applications

The versatility of the ADP5585ACBZ-04-R7 makes it an excellent choice for a variety of applications, including:

• Smartphones and Tablets
• Portable Media Players
• Industrial Control Systems
• Automotive Control Panels
• Medical Devices
• Home Automation Systems

With its robust feature set and ease of integration, the ADP5585ACBZ-04-R7 from Analog Devices Inc. is a powerful component for designers looking to enhance the functionality and efficiency of their systems.
