ADP2138ACBZ-2.5-R7 - Analog Devices Inc.

The ADP2138ACBZ-2.5-R7 is a high-efficiency, low-quiescent-current step-down dc-to-dc converter manufactured by Analog Devices Inc., a leader in high-performance semiconductors. Designed for a variety of applications, this component is particularly suited for portable and battery-powered systems where energy efficiency and compactness are critical.

Key Features

• Output Voltage: Fixed at 2.5V, providing a stable voltage for consistent operation.
• High Efficiency: Up to 95% efficiency, ensuring minimal power loss during conversion and longer battery life for portable applications.
• Low Quiescent Current: Ideal for battery-powered applications, the low quiescent current extends battery life when the device is in standby mode.

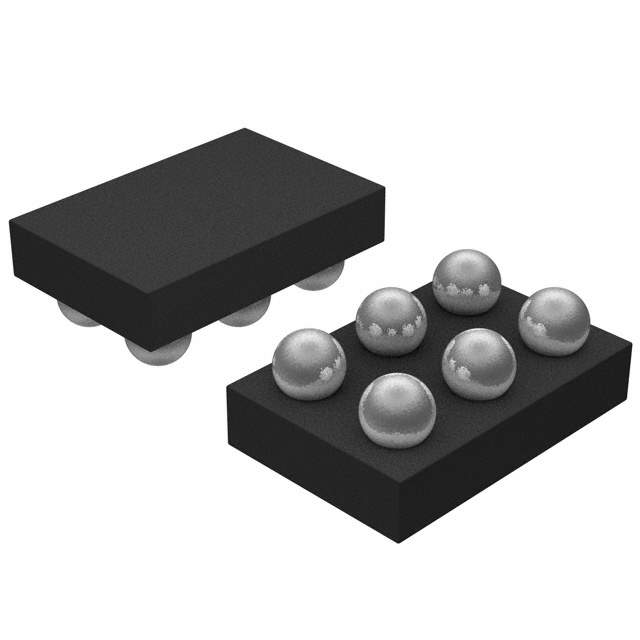

• Package Type: Comes in a compact 6-lead WLCSP (Wafer Level Chip Scale Package), saving valuable board space.
• Input Voltage Range: Operates over a wide input voltage range from 2.3V to 5.5V, accommodating various power sources and battery chemistries.
• High-Switching Frequency: Features a 3 MHz fixed switching frequency, which allows for the use of small external components, reducing the overall solution size.
• Current Mode Control: Provides fast transient response and cycle-by-cycle current limiting for reliable operation.
• Thermal Overload Protection: Enhances the reliability of the device by preventing overheating and potential damage.
• Integrated Synchronous Rectifier: Eliminates the need for an external diode and reduces conduction losses, further improving efficiency.

Applications

The ADP2138ACBZ-2.5-R7 is versatile and can be used in a wide range of applications, including:

• Portable and battery-powered devices
• Wireless handsets and accessories
• Personal media players and audio devices
• Digital cameras and video equipment
• Medical and healthcare devices
• GPS and navigation systems

In conclusion, the ADP2138ACBZ-2.5-R7 from Analog Devices Inc. is a robust and efficient solution for power management in compact, portable devices. Its high efficiency, low quiescent current, and small form factor make it an excellent choice for designers looking to optimize their power conversion systems.
