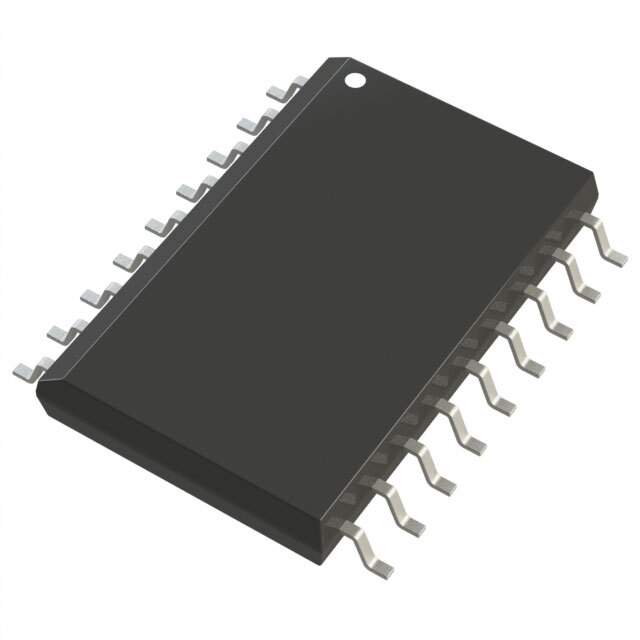

ADM222ARZ-REEL

Part No ADM222ARZ-REEL
Manufacturer Analog Devices Inc.
Catalog Interface - Drivers, Receivers, Transceivers
Description High-Speed, 5 V, 0.1 F CMOS RS-232 Drivers/Receivers
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 2/2
Duplex Full
Receiver Hysteresis 400mV
Data Rate 200kbps
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 18-SOIC (0.295", 7.50mm Width)
Manufacturer Package 18-SOIC
Win Source Part Number 1140687-ADM222ARZ-REEL
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Family Name ADM222
Introduction Date October 28, 1995
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ADM222ARZ-REEL CAD Model

Description

Product Overview: ADM222ARZ-REEL

The ADM222ARZ-REEL is a high-performance, dual-channel RS-232/V.28 transceiver from the esteemed manufacturer Analog Devices Inc. This integrated circuit is designed to operate from a single 5V power supply, making it an ideal choice for many communication applications where power efficiency is critical.

The ADM222ARZ-REEL is part of a family of devices that feature a high data rate of up to 230 kbps and a low operational current, which is typically 5 mA. This makes it suitable for battery-powered, portable, or power-sensitive systems. The device also includes two drivers and two receivers, providing the necessary interface between the digital logic and the serial port connector.

Key Features

  • High Data Rate: Supports data rates up to 230 kbps, allowing for efficient data communication.
  • Low Power Consumption: With a typical supply current of 5 mA, it is optimized for power-sensitive applications.
  • Single 5V Power Supply: Simplifies power management in a system by operating from a single supply voltage.
  • ESD Protection: Equipped with ±15 kV ESD protection on RS-232 input/output lines, ensuring robustness and reliability in harsh environments.
  • Industry Standard Pinout: Compatible with industry-standard 24-pin SSOP (Shrink Small Outline Package), facilitating easy integration into existing designs.

Applications

The versatility of the ADM222ARZ-REEL makes it a perfect fit for a wide array of applications, including:

  • Portable and battery-powered devices
  • Data communication equipment
  • Modems and serial port interfaces
  • Industrial and process control systems

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the ADM222ARZ-REEL is no exception. It is available in a tape and reel package, which is ideal for automated assembly processes, ensuring a reliable supply for mass production requirements.

With its combination of high data rate, low power consumption, and robust protection features, the ADM222ARZ-REEL from Analog Devices Inc. stands out as a superior choice for designers seeking to incorporate a reliable RS-232 interface into their systems.
